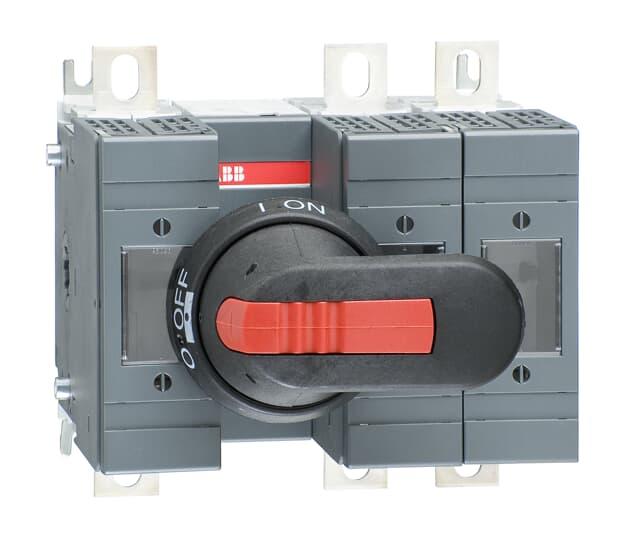

ABB OS125GD12P SWITCH FUSE OS125GD12P

Product Code: OS125GD12P

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,000,00,Handle and shaft included,

Technical Specifications

Brand ABB
Conventional Free-Air Thermal Current - Ith (A) 125
Conventional Thermal Current - Ithe (A) 125
Degree of Protection - Handle IP65
Design of Control Element Long Turning Handle
Dimensions (mm) 147W x 140H x 130D
Handle Colour Black
Handle Dimensions (mm) 98W x 45H x 66D
Handle Length (mm) 65
Handle Material Plastic
Handle Type Pistol
Included Handle, Shaft
Main Circuit Electrical Connection Bolt Connection
Maximum Operational Voltage AC (V) 1000
Mode of Operation Front Operated
Mounting Type Busbar Mount
No. of Poles 3
Operating Mechanism Mechanism Between the Poles 12
Pollution Degree 3
Position of Control Element Front Side
Power Loss (W) 12/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 80
Rated Current (A) 125
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-22A 500V (A) 125
Rated Operational Current AC-22A 690V (A) 125
Rated Operational Current AC-23A 380-415V (A) 125
Rated Operational Current AC-23A 500V (A) 125
Rated Operational Current AC-23A 690V (A) 125
Rated Operational Power AC-23A 380-415V (kW) 110
Rated Operational Power AC-23A 400-415 V (kW) 55
Rated Operational Power AC-23A 500V (kW) 75
Rated Operational Power AC-23A 690V (kW) 110
Rated Operational Voltage (V) 690
Rated Short-Time Withstand Current - Icw (kA) 5
Rated Short-time Withstand Current - Icw (kA/1s) 5
Rated Uninterrupted Current - Iu (A) 125
Standards and Approvals IEC 60947-3
Suitable For NH000
Terminal Type Lug terminals
Terminal Width (mm) 20
Type Main Switch
