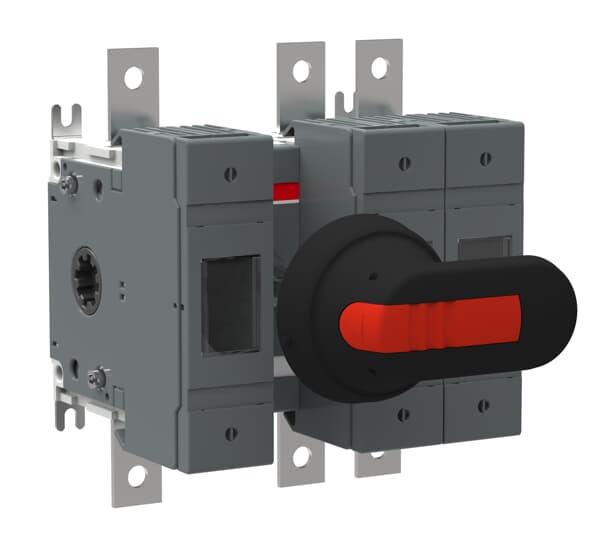

ABB OS160GB12P SWITCH FUSE OS160GB12P

Product Code: OS160GB12P

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),British Standard,A2-A4,Handle and shaft included,

Technical Specifications

Brand ABB
Conventional Free-Air Thermal Current - Ith (A) 160
Conventional Thermal Current - Ithe (A) 160
Degree of Protection - Handle IP65
Design of Control Element Long Turning Handle
Dimensions (mm) 147W x 140H x 115D
Handle Colour Black
Handle Material Plastic
Handle Type Pistol
Included Handle, Shaft
Main Circuit Electrical Connection Bolt Connection
Maximum Operational Voltage AC (V) 1000
Mode of Operation Front Operated
Mounting Type Busbar Mount
No. of Poles 3
Operating Mechanism Mechanism Between the Poles 12
Pollution Degree 3
Position of Control Element Front Side
Power Loss (W) 12/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 80
Rated Current (A) 160
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-22A 500V (A) 160
Rated Operational Current AC-22A 690V (A) 160
Rated Operational Current AC-23A 500V (A) 160
Rated Operational Current AC-23A 690V (A) 160
Rated Operational Power AC-23A 380-415V (kW) 132
Rated Operational Power AC-23A 400-415 V (kW) 75
Rated Operational Power AC-23A 500V (kW) 90
Rated Operational Power AC-23A 690V (kW) 132
Rated Operational Voltage (V) 690
Rated Short-Time Withstand Current - Icw (kA) 5
Rated Short-time Withstand Current - Icw (kA/1s) 5
Rated Uninterrupted Current - Iu (A) 160
Standards and Approvals IEC 60947-3
Terminal Type Lug terminals
Terminal Width (mm) 20
Type Main Switch
