Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	63
Conventional Thermal Current - Ithe (A)	63
Degree of Protection - Handle	IP65
Design of Control Element	Long Turning Handle
Dimensions (mm)	112W x 125H x 109D
Handle Colour	Black
Handle Material	Plastic
Handle Type	Pistol
Included	Handle, Shaft
Main Circuit Electrical Connection	Screw Connection
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front Operated
Mounting Type	Busbar Mount
No. of Poles	3
Operating Mechanism	Mechanism Between the Poles 12
Pollution Degree	3
Position of Control Element	Front Side
Power Loss (W)	7.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	80
Rated Current (A)	63
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-22A 500V (A)	63
Rated Operational Current AC-22A 690V (A)	63
Rated Operational Current AC-23A 500V (A)	63
Rated Operational Current AC-23A 690V (A)	63
Rated Operational Power AC-23A 380-415V (kW)	55
Rated Operational Power AC-23A 400-415 V (kW)	30
Rated Operational Power AC-23A 500V (kW)	37
Rated Operational Power AC-23A 690V (kW)	55
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	2.5
Rated Short-time Withstand Current - Icw (kA/1s)	2.5
Rated Uninterrupted Current - Iu (A)	63
Standards and Approvals	IEC 60947-3
Suitable For	Shape A2/A3
Terminal Type	Screw terminals
Type	Main Switch

Switch Disconnectors

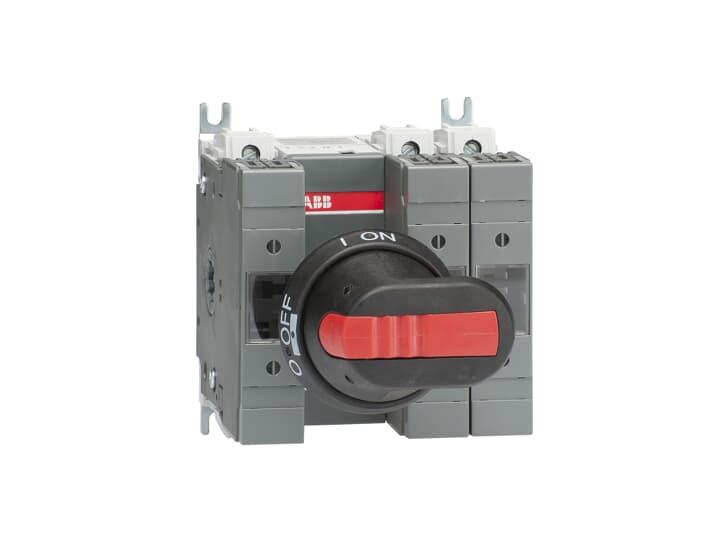

ABB OS63GB12P SWITCH FUSE OS63GB12P
