Brand	ABB
Conventional Free-Air Thermal Current - Ith (A)	800
Conventional Thermal Current - Ithe (A)	720
Degree of Protection - Handle	IP65
Design of Control Element	Long Turning Handle
Dimensions (mm)	341W X 306H X 233D
Handle Colour	Black
Handle Material	Plastic
Handle Type	Pistol
Included	Handle, Shaft
Main Circuit Electrical Connection	Bolt Connection
Maximum Operational Voltage AC (V)	1000
Mode of Operation	Front Operated
Mounting Type	Busbar Mount
No. of Poles	3
Operating Mechanism	Mechanism Between the Poles 12
Pollution Degree	3
Position of Control Element	Front Side
Power Loss (W)	65/Pole
Rated Conditional Short-Circuit Current - Inc (kA)	80
Rated Current (A)	800
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage (V)	1000
Rated Operational Current AC-22A 380-415V (A)	800
Rated Operational Current AC-22A 500V (A)	800
Rated Operational Current AC-22A 690V (A)	800
Rated Operational Current AC-23A 380-415V (A)	800
Rated Operational Current AC-23A 500V (A)	800
Rated Operational Current AC-23A 690V (A)	800
Rated Operational Power AC-23A 380-415V (kW)	710
Rated Operational Power AC-23A 400-415 V (kW)	450
Rated Operational Power AC-23A 500V (kW)	560
Rated Operational Power AC-23A 690V (kW)	710
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	18
Rated Short-time Withstand Current - Icw (kA/1s)	18
Rated Uninterrupted Current - Iu (A)	720
Standards and Approvals	IEC 60947-3
Suitable For	Shape C1-C3
Terminal Type	Lug terminals
Terminal Width (mm)	39
Type	Main Switch

Switch Disconnectors

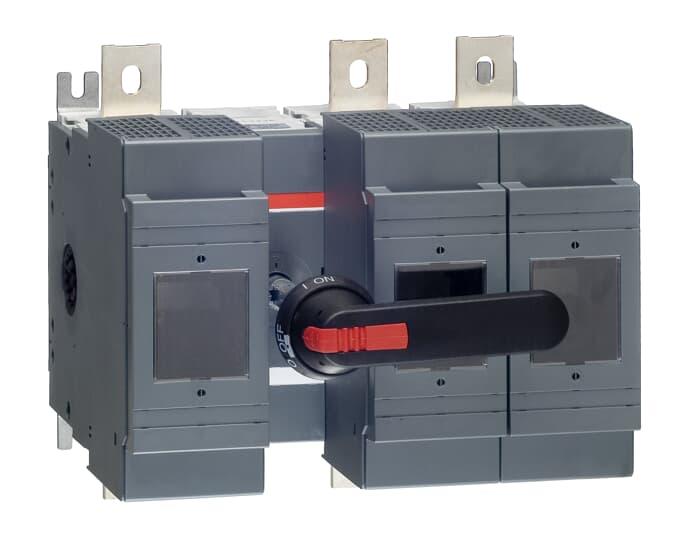

ABB OS800B12P SWITCH FUSE OS800B12P
