Specifications

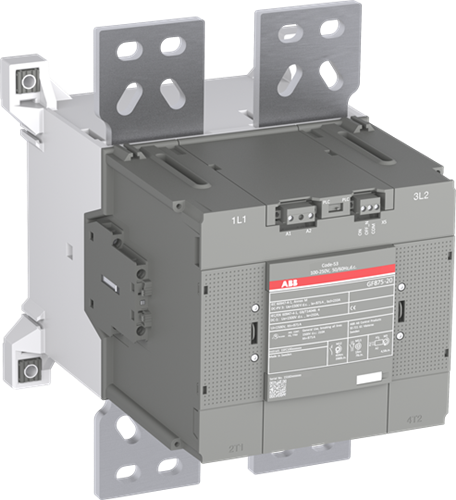

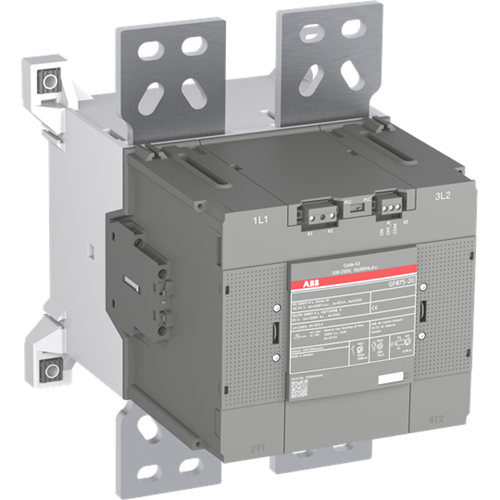

Product Type	Block Contactor
Brand	ABB
No. of Auxiliary Contacts	4
Rated Control Supply Voltage (Us)	50 Hz 100-250 V 60 Hz 100-250 V DC Operation 100-250 V
Rated Operational Current 1500V DC-PV3	(1500 V DC) 2-Pole, 60 °C 875 A (1500 V DC) 2-Pole, 70 °C 650 A
Rated Frequency	50 / 60 Hz
Depth	300 mm
Height	355 mm
Weight	14.3 kg
Width	253 mm
Ambient Temperatures	-40 ... 70 °C
Standards and Approvals	IEC 60529,IEC 60947-1, EN 60529
