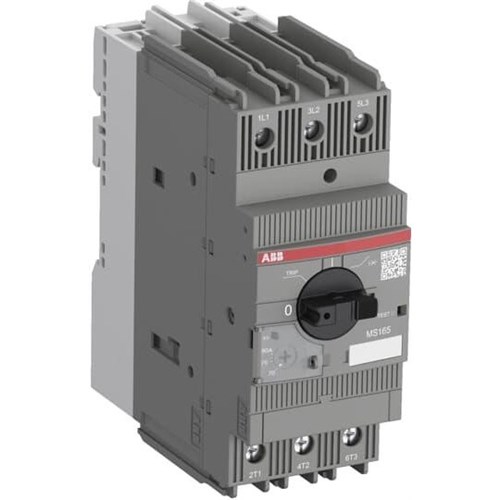

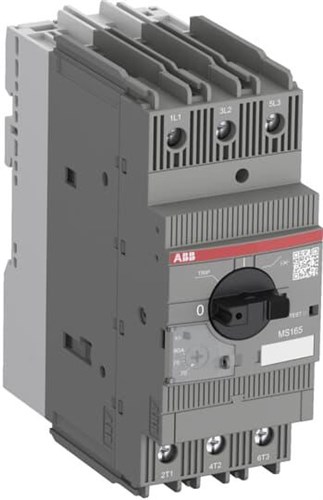

<p>The Manual Motor Starter is a robust and reliable component designed for industrial and commercial applications, ensuring efficient motor protection and control. With a rated voltage of 690 VAC and a current rating of 16 A, it is well-suited to handle demanding electrical environments. The device features a rotary handle actuator type, providing straightforward operation while maintaining precision in motor management.</p><p>A key attribute of this starter is its power loss of 11.43 W, which contributes to energy efficiency in operational settings. The rated insulation voltage stands at an impressive 1000 V, offering enhanced safety and reliability under various conditions. Its screw terminal type ensures secure connections with a tightening torque of 4 N-m, supporting stable performance over time.</p><p>The product boasts an IP20 degree of protection, indicating it is safeguarded against solid objects larger than 12 mm but not against water ingress—a consideration for installation environments. It supports wire stripping lengths up to 16 mm for ease during setup.</p><p>Dimensionally compact yet robust, the unit measures 55 mm in width, 142.65 mm in height, and has a depth of 122.1 mm—making it suitable for installations where space might be limited but performance cannot be compromised.</p><p>Operational temperature ranges from -25 to 60 degrees Celsius ensure that the starter can function effectively across diverse climates found throughout Australia. Additionally, its storage temperature range spans from -50 to 80 degrees Celsius—demonstrating resilience even when not actively in use.</p><p>This manual motor starter adheres to rigorous standards including CSA 22.2 No.14 and multiple IEC/EN certifications (60947-1,-2,-4-1), as well as UL standard compliance (UL60947-4-1), affirming its global acceptance and reliability in safety-critical applications.</p><p>Rated power capacity reaches up to 7.5 kW with an electrical connection facilitated by screws—a tried-and-tested method known for durability under high-stress conditions—and offers flexible connectivity options ranging from ferrule-based connections to rigid or stranded wires accommodating sizes between flexible with ferrule at max size of up to 35 sq-mm down to rigid or solid wires at minimum size of up to only four sq-mm.</p><p>Withstanding short circuit currents up till an impressive threshold of240 A alongside having breaking capacity reaching100 kA ensures this device can endure significant electrical stresses without compromising functionality or safety aspects within your system infrastructure requirements; meanwhile adjustable current setting range spanning10–16 A allows customization tailored towards specific application needs aligning perfectly alongside overload release current settings fixed precisely10 A providing further assurance against potential overcurrent scenarios encountered during typical usage cycles experienced daily across varied sectors relying heavily upon consistent uninterrupted operations delivered reliably every single time without fail thanks largely due switching type being thermomagnetic based technology underpinning overall design architecture deployed here today!</p>
