Specifications

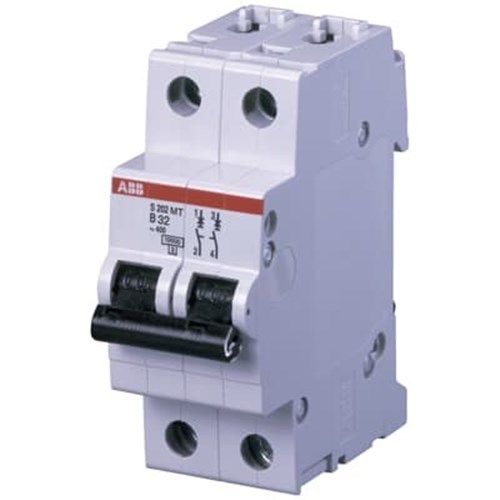

Product Type	Miniature Circuit Breaker
Brand	ABB
Series	S200MT
Ambient Temperature	-25 to 55 deg C Operation, -40 to 70 deg C Storage
Curve Type	Z
Degree of Pollution	IP3
Degree of Protection	IP20
Depth	69 mm
Height	88 mm
Housing Colour	RAL 7035 Grey
Number of Poles	2
Power Loss	6.2 W
Rated Current	16 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	440 V
Rated Short Circuit Current	10 kA
Rated Voltage	400 V
Standards and Approvals	IEC/EN 60947-2
Terminal Type	Screw Clamp
Tightening Torque	2.8 N-m
Width	35 mm
