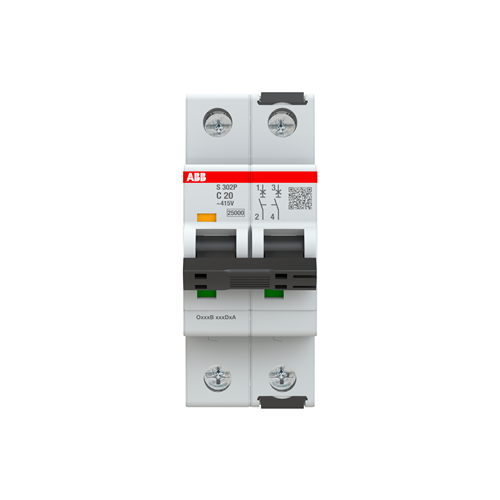

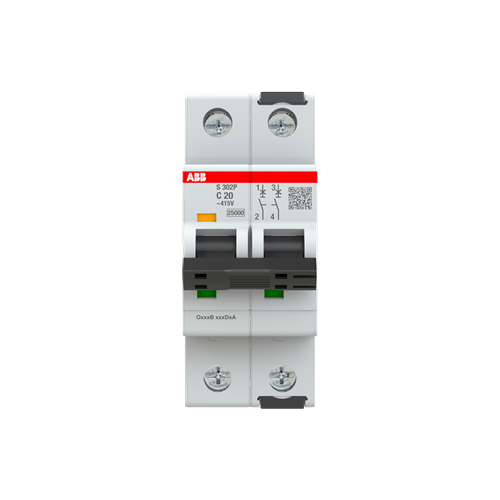

<p>The S300P series Miniature Circuit Breaker (MCB) is a robust and reliable choice for industrial and commercial electrical systems, offering a range of features that ensure safety and efficiency. Designed to handle demanding environments, this MCB is equipped with a rated current of 20 A, making it suitable for various applications.</p><p>With a rated impulse withstand voltage of 6 kV and insulation voltage of 500 V, the S300P ensures superior protection against overvoltages. The breaker operates at a rated voltage of 415 VAC, providing compatibility with most standard electrical systems. Its breaking capacity stands at an impressive 15 kA, ensuring effective interruption in case of faults.</p><p>The dual-pole design enhances its versatility while maintaining compact dimensions with a width of 35 mm, height of 88 mm, and depth of 69 mm. This makes it ideal for installations where space is at a premium. The device&#39;s power loss is minimal at just 4.6 W.</p><p>Safety standards are well met as the MCB complies with CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications. It boasts an IP20/IP40 degree of protection depending on installation conditions—ensuring resilience against dust ingress—and offers additional peace of mind when installed within enclosures.</p><p>Installation is straightforward due to its screw clamp terminal type requiring a tightening torque of only 2.8 N-m. The wire stripping length needed is just 14 mm which simplifies wiring tasks further.</p><p>Engineered for durability, this MCB supports up to an impressive electrical durability rating of up to 20000 cycles and can handle short circuit capacities up to an exceptional level of 25 kA under specific conditions.</p><p>In terms of environmental adaptability—the unit functions optimally across ambient temperatures ranging from -40 to +70 degrees Celsius without compromising performance or reliability—making it suitable even in extreme climates found across Australia’s diverse regions.</p><p>The C curve type characteristic ensures adequate tripping response times suited for general-purpose applications including inductive loads like motors or transformers commonly used in industrial settings.</p><p>Mounting flexibility allows positioning on any DIN rail orientation supported by arbitrary power supply connections enhancing ease during system integration phases whilst maintaining operational integrity throughout service life span thanks largely due also partly owed towards high dielectric test voltages reaching thresholds around approximately two kilovolts ensuring comprehensive isolation capabilities whenever required too!</p><p>Finished off elegantly in RAL7039 Grey housing adds not only aesthetic appeal but also signifies quality craftsmanship inherent among products belonging within trusted brands known globally today!</p>
