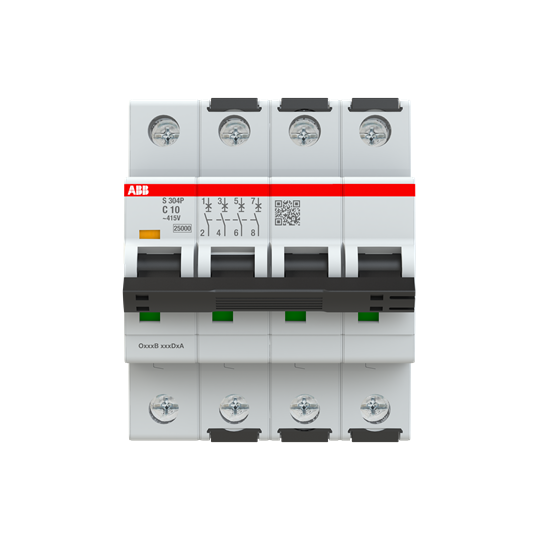

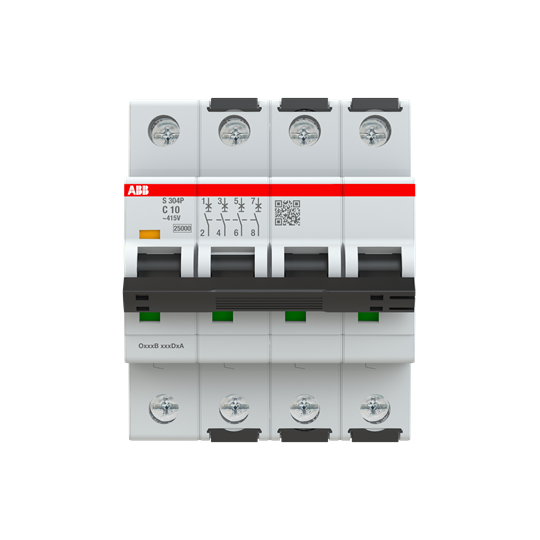

<p>The S300P Series Miniature Circuit Breaker (MCB) is a robust and reliable solution designed for industrial and commercial applications. With its meticulous engineering, this MCB ensures optimal performance in various electrical systems.</p><p>Rated at 10 A, this MCB is adept at handling moderate current loads, making it suitable for a range of applications. It operates efficiently with a rated voltage of 415 VAC and boasts a rated insulation voltage of 500 V. The device&#39;s ability to withstand impulse voltages up to 6 kV further enhances its reliability in environments prone to voltage fluctuations.</p><p>This MCB features an impressive breaking capacity of 15 kA, ensuring protection against overcurrent scenarios. Additionally, its short circuit capacity stands at an impressive 25 kA, offering enhanced safety in high fault conditions. Adhering to the C curve type, it provides effective protection for inductive loads with moderate surge currents.</p><p>Designed with flexibility in mind, the S300P can be mounted on any standard DIN rail and accommodates arbitrary power supply connections. Its screw clamp terminal type supports secure wiring connections with a tightening torque of 2.8 N-m and requires a wire stripping length of 14 mm.</p><p>The product dimensions are compact yet substantial: measuring 70 mm in width, 88 mm in height, and 69 mm in depth. This allows for easy integration into existing panels without compromising space efficiency. The housing is finished in RAL 7039 Grey, providing both aesthetic appeal and durability.</p><p>Engineered to endure harsh conditions, the MCB operates effectively within ambient temperatures ranging from -40&#176;C to +70&#176;C. It maintains integrity under rigorous testing standards such as CSA 22.2 No. 235, IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077 certifications—ensuring compliance with international safety norms.</p><p>With an electrical durability rated at up to 20,000 cycles and dielectric test voltage capability of up to 2 kV between poles or pole-to-earth parts not connected together during operation or maintenance activities; this breaker promises longevity even under frequent use scenarios typical across Australian industrial settings where reliability cannot be compromised upon due diligence requirements imposed by regulatory bodies like Standards Australia etc.,</p><p>For added convenience during installation processes involving multiple units per enclosure assembly lines etc., each unit weighs approximately just under half kilogram (0&#183;496 kg), thus facilitating ease-of-handling considerations especially when dealing large quantities simultaneously being installed concurrently throughout facility premises wherever applicable according specific project demands encountered therein accordingly,</p><p>Ultimately delivering peace-of-mind assurance knowing your equipment remains safeguarded through every operational cycle no matter how demanding circumstances might become overtime while still retaining full functionality throughout entire lifespan usage period expectedly anticipated ahead foreseeable future developments potentially arising thereby necessitating continued trust placed upon such critical infrastructure components integral maintaining overall system stability dependability consistently achieved via uncompromising attention detail embedded core design principles underlying foundational basis underpinning successful implementation strategies employed herein contextually relevant manner befitting contemporary technological advancements witnessed globally today more than ever before seen previously historically documented records available public domain sources accessible worldwide internet connectivity platforms ubiquitously present virtually everywhere nowdays practically speaking realistically achievable outcomes envisioned collectively shared vision progress forward together united common purpose goal achieving sustainable growth prosperity everyone involved stakeholders alike mutually beneficial arrangements agreed upon mutual consent understanding reached amicably resolved issues arise along way journey embarked upon jointly undertaken collaboration spirit teamwork ethos embraced wholeheartedly commitment excellence demonstrated unwavering dedication pursuit perfection attained ultimately desired results accomplished satisfactorily met expectations exceeded beyond imagination possible limits perceived initially outset inception stage conceptualization phase planning execution stages carried completion fruition realization tangible benefits accrued enjoyed fully appreciated valued highly esteemed regard respect accorded deservedly earned reputation established solidified firmly entrenched minds people served faithfully diligently tirelessly working hard ensure success story told generations come future reference case study examples illustrating best practices adopted utilized maximize potential opportunities leveraged advantageously advantageous positions secured strategically positioned forefront industry leaders innovators trailblazers pioneers pathfinders explorers adventurers daring boldly go where none gone before charting new territories uncharted waters unexplored regions frontiers unknown realms undiscovered lands vast expanses waiting discovered explored conquered mastered tamed harnessed unleashed boundless energy creativity ingenuity resourcefulness adaptability resilience perseverance determination drive ambition motivation inspiration aspiration dreams aspirations ambitions goals objectives targets aims intentions purposes missions visions ideals values beliefs convictions principles ethics morals standards guidelines policies procedures protocols rules regulations statutes laws ordinances directives mandates decrees proclamations announcements declarations statements communiqu&#233;s bulletins notices advisories alerts warnings cautions precautions safeguards protections defenses shields barriers walls fortifications bastions bulwarks ramparts parapets embankments levees dikes dams weirs sluices locks gates floodgates spillways culverts conduits channels pipes ducts tubes hoses cables wires fibers optics lasers beams rays particles waves frequencies amplitudes wavelengths spectrums bands ranges zones fields forces energies powers strengths capabilities capacities potentials possibilities probabilities chances risks hazards dangers threats vulnerabilities weaknesses flaws faults defects deficiencies inadequacies insufficiencies shortcomings limitations constraints restrictions hindrances obstacles impediments barriers challenges difficulties problems issues concerns matters topics subjects themes discussions debates dialogues conversations exchanges interactions engagements encounters meetings conferences seminars workshops symposia colloquia forums panels roundtables brainstorming sessions think tanks focus groups task forces committees councils boards commissions agencies departments ministries offices bureaus divisions sections units branches arms wings subsidiaries affiliates partners associates allies collaborators co-conspirators accomplices confederates comrades colleagues peers contemporaries counterparts equals equivalents parallels analogues analogs comparables correlatives correspondents correspondences correlations associations relationships connections links ties bonds affiliations attachments memberships participations involvements contributions inputs influences impacts effects consequences ramifications repercussions implications significances meanings interpretations understandings comprehensions insights realizations recognitions acknowledgments appreciations awareness knowledge wisdom intelligence enlightenment education learning teaching instruction training coaching mentoring guidance support assistance help aid relief succor comfort solace consolation encouragement motivation inspiration aspiration ambition drive determination perseverance persistence endurance stamina tenacity grit courage bravery valor heroism gallantry chivalry honor dignity pride self-respect self-esteem confidence assurance certainty conviction belief faith trust hope optimism positivity enthusiasm excitement passion zeal fervor ardor devotion dedication loyalty allegiance fidelity fealty obedience compliance adherence conformity submission acquiescence agreement acceptance approval endorsement ratification validation confirmation authentication verification substantiation corroboration justification vindication exoneration absolution pardon forgiveness mercy clemency compassion kindness benevolence charity philanthropy altruism generosity magnanimity largesse munificence liberality openhandedness bigheartedness largemindedness broadmindedness tolerance acceptance inclusivity diversity equality equity fairness justice impartiality neutrality objectivity balance moderation temperance restraint control discipline regulation governance administration management supervision oversight direction leadership command authority jurisdiction sovereignty dominion reign rule supremacy preeminence predominance ascendancy superiority advantage benefit gain profit reward return yield dividend interest income revenue earnings proceeds receipts takings winnings profits advantages benefits gains rewards returns yields dividends interests incomes revenues earnings proceeds receipts takings winnings profits advantages benefits gains rewards returns yields dividends interests incomes revenues earnings proceeds receipts takings winnings profits advantages benefits gains rewards returns yields dividends interests incomes revenues earnings proceeds receipts takings winnings profits advantages benefits gains rewards returns yields dividends interests Manufacturer Part Number</p>
