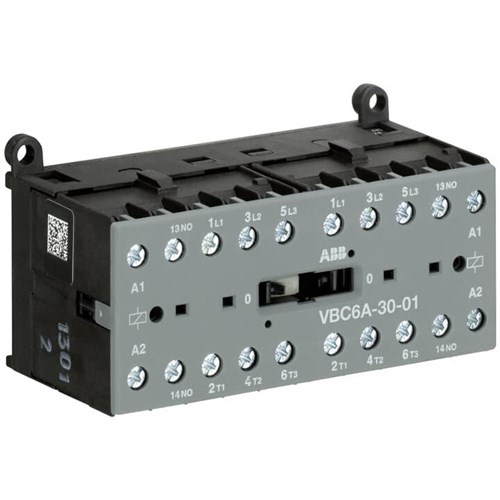

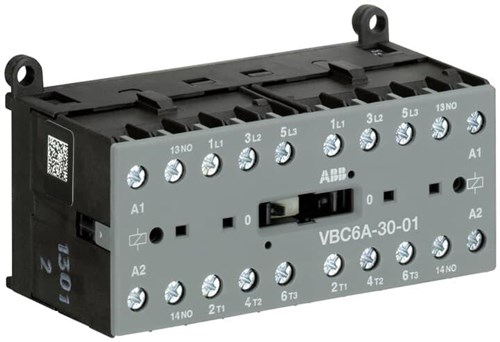

<p>When selecting a mini contactor for your industrial or commercial applications, it&#39;s crucial to consider the technical specifications and standards that align with your operational needs. This mini contactor offers robust features designed to meet diverse requirements effectively.</p><p>Operating at a rated voltage of 24 VAC and a current of 6 A, this device is suitable for various control systems that demand reliability and efficiency. Its dual-rated frequency capability of 50/60 Hz ensures compatibility across different electrical grids, making it versatile for international applications.</p><p>With a power loss between 1-2 W, this mini contactor is engineered to minimize energy consumption while maintaining optimal performance. The rated impulse withstand voltage of 6 kV provides superior protection against transient overvoltages, ensuring durability in challenging environments.</p><p>The product boasts a rated insulation voltage of 690 V, enhancing its safety profile by providing excellent resistance to electrical breakdowns. The contact configuration includes one normally closed (NC) and three normally open (NO) contacts, offering flexibility in controlling circuits as per specific application demands.</p><p>Designed with practicality in mind, the screw terminal type facilitates straightforward installation and secure connections. The IP20 degree of protection indicates suitability for indoor use where there is minimal exposure to dust or moisture ingress. Additionally, the IP3 degree of pollution rating makes it apt for environments with limited airborne pollutants.</p><p>This mini contactor&#39;s rail mounting type simplifies integration into existing setups without extensive modifications. With dimensions measuring 96.2 mm in width, 57.5 mm in height, and 46.7 mm in depth, it occupies minimal space within control panels while delivering maximum functionality.</p><p>Engineered to operate efficiently within temperatures ranging from -20&#176;C to +55&#176;C, this unit demonstrates resilience under varying climatic conditions—ideal for installations requiring consistent performance throughout seasonal changes.</p><p>Adhering to rigorous standards such as IEC/EN 60947-1,-4-1,-5-1; UL 60947-1,-4-1; and IEC 60335-2-40 A2L ensures compliance with international safety regulations—a testament to its quality manufacturing processes.</p><p>The actuating voltage type being DC further broadens its applicability across different system designs where direct current operation is preferred or required. Rated at an impressive power output capacity of up to 6 kW positions it well-suited even when higher loads are involved—an essential consideration during selection phases especially if scalability might be anticipated down future lines too!</p><p>Overall these comprehensive attributes collectively make this particular model not only dependable but also adaptable enough covering wide range scenarios potentially encountered out field thereby allowing you focus more critical aspects operations knowing foundational components like these securely place doing job intended day-in-day-out consistently reliably!</p>
