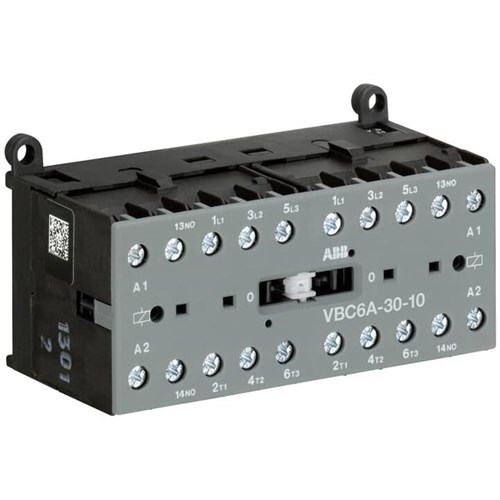

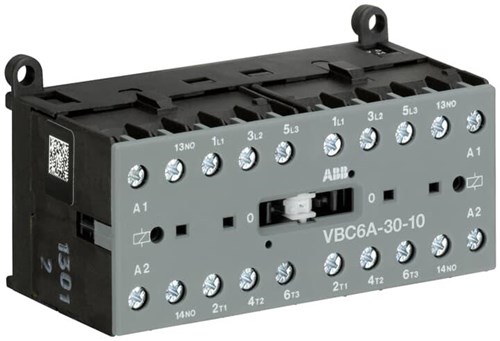

ABB VBC6A301001 Mini Contactor 3P 3NO 6A 6kW 24VAC Screw Rail Mount

Product Code: VBC6A301001

  • Compact mini contactor with 1NC+3NO config
  • Operates at 24 VAC, 6 A, and 50/60 Hz
  • Suitable for rail mounting, IP20 protection
  • Handles up to 6 kW power efficiently
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Mini Contactor
Brand ABB
Actuating Voltage Type DC
Contact Configuration 1NC+3NO
Degree of Pollution IP3
Degree of Protection IP20
Depth 46.7 mm
Electrical Connection Screw
Function Reversing Contactor
Height 57.5 mm
Mounting Type Rail
Number of Poles 3
Operating Voltage Type DC
Operational Temperature -20 to 55 deg C
Power Loss 1-2 W
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 6 kW
Rated Voltage 24 VAC
Standards and Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1, IEC 60335-2-40 A2L
Terminal Type Screw
Width 96.2 mm

Description

<p>When it comes to reliable performance in industrial and commercial settings, this Mini Contactor stands out with its robust specifications tailored for demanding applications. Designed for professionals who require precision and efficiency, this contactor delivers on all fronts.</p><p>Operating at a rated voltage of 24 VAC and a rated current of 6 A, it is well-suited for various control systems. The dual compatibility with both 50 Hz and 60 Hz frequencies adds to its versatility across different power grids. With a minimal power loss ranging between 1-2 W, the device ensures energy-efficient operation without compromising on performance.</p><p>Safety is paramount in electrical components, and this contactor meets high standards with a rated impulse withstand voltage of 6 kV. Its rated insulation voltage reaches up to 690 V, providing ample protection against electrical faults. The contact configuration of 1NC+3NO (one normally closed and three normally open contacts) offers flexibility in circuit design.</p><p>Installation is straightforward thanks to the screw terminal type which ensures secure connections. The IP20 degree of protection signifies that it is safe from solid objects larger than 12 mm but not protected against moisture ingress; thus it&amp;#39;s best suited for indoor use or controlled environments. Additionally, the IP3 degree of pollution rating indicates its capability to operate effectively even under moderate levels of airborne contaminants.</p><p>The compact dimensions—96.2 mm in width, 57.5 mm in height, and a depth of just 46.7 mm—make it ideal for space-constrained installations while maintaining an operational temperature range from -20&amp;#176;C to +55&amp;#176;C ensuring reliability across diverse climates.</p><p>Compliance with international standards such as IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1 alongside UL certifications underscores its quality assurance and suitability for global markets including Australia’s stringent requirements.</p><p>This mini contactor also boasts an impressive rated power capacity of up to 6 kW coupled with DC actuating voltage type compatibility making it adaptable for modern automation needs where DC control signals are prevalent.</p><p>In summary, whether you&amp;#39;re upgrading existing infrastructure or designing new systems from scratch this Mini Contactor provides dependable functionality backed by rigorous safety standards making it an excellent choice for your technical needs.</p>
