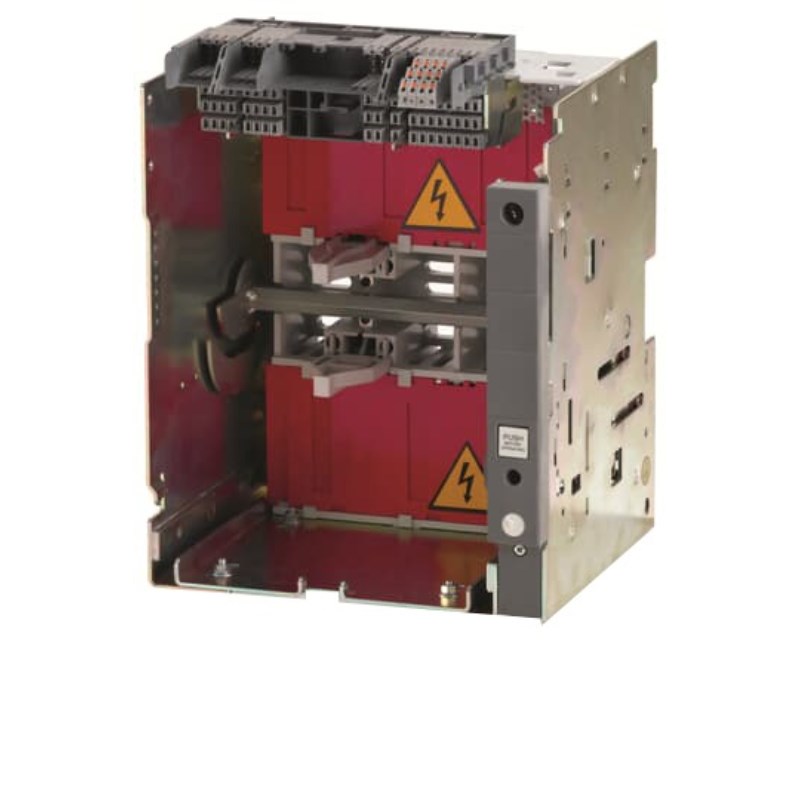

When it comes to selecting a reliable Automatic Air Circuit Breaker (ACB) for your industrial or commercial applications, understanding the technical specifications is crucial. This ACB offers a robust solution tailored to meet demanding electrical requirements with precision and efficiency.
Designed for versatility, this ACB operates within a rated current range of 500-1250 Amperes, making it suitable for various load conditions. The rated voltage stands at 690 VAC, ensuring compatibility with standard systems while providing optimal performance in diverse environments.
Safety and reliability are paramount in any electrical system. This ACB is engineered to withstand high impulse voltages up to 12 kV and maintains an insulation voltage of 1000 VAC. These features ensure that the circuit breaker can handle unexpected surges without compromising system integrity.
In terms of fault management, the device boasts a breaking capacity of 66 kA, allowing it to safely interrupt significant fault currents. Additionally, its short-time withstand current rating of 50 kA further enhances its ability to manage transient conditions effectively.

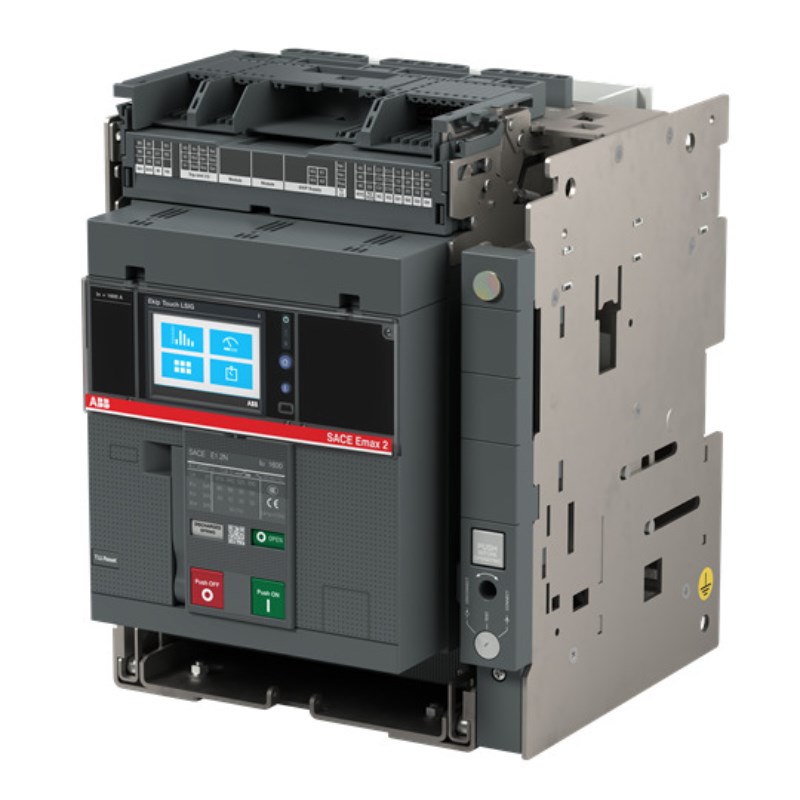

The trip unit incorporated into this ACB is the Ekip Touch LSIG model. Known for its advanced protection capabilities, this digital trip unit provides comprehensive monitoring and control over system parameters. It ensures precise adjustments and timely interventions during overloads or faults.
Efficiency also extends to power management with a power loss specification of just 244 W, reflecting its energy-conscious design which minimizes unnecessary consumption while maintaining operational readiness.
The physical configuration includes three poles and utilizes horizontal rear spread terminals for streamlined installation within existing setups. This feature simplifies integration by accommodating straightforward connections without requiring extensive modifications.
Adhering to IEC 309 standards guarantees compliance with international regulations governing safety and performance criteria in electrical equipment. Such adherence underscores the commitment to quality manufacturing processes that prioritize user safety and product longevity.
With these specifications in mind, this Automatic ACB serves as an ideal choice for professionals seeking dependable circuit protection solutions capable of handling rigorous demands across various sectors—from manufacturing plants to large-scale commercial installations—ensuring both safety and continuity in operations without compromise on performance metrics or regulatory standards compliance.
Frame Size: E1.2
