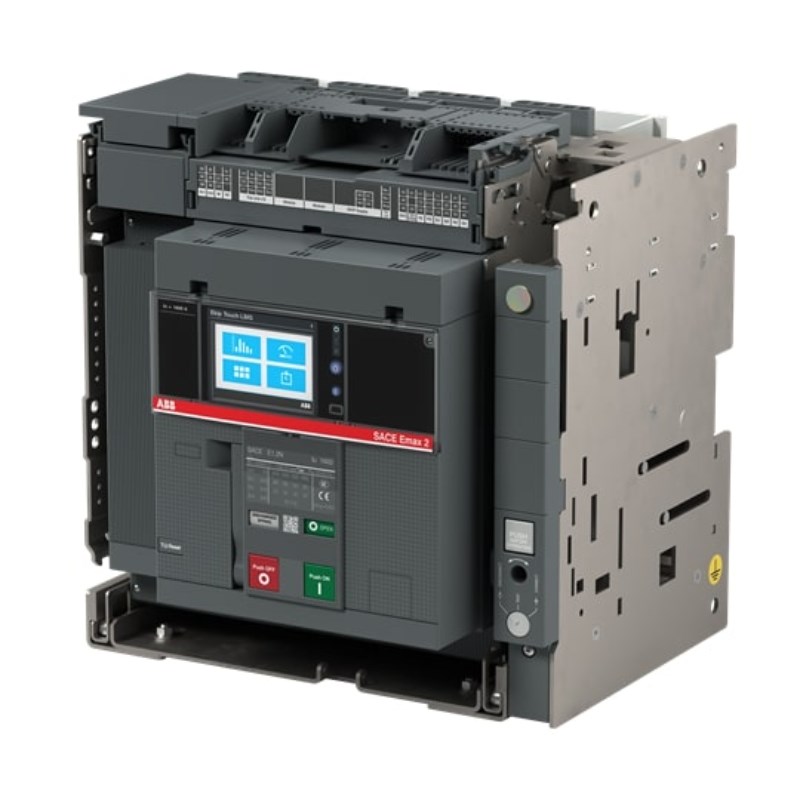

When it comes to selecting a reliable Motor Operated Air Circuit Breaker (ACB) for industrial and commercial applications, understanding the technical specifications is crucial. This ACB model offers a comprehensive range of features that cater to demanding electrical environments.
Designed with a rated current capacity ranging from 500 to 1250 Amperes (A), this ACB ensures flexibility in accommodating various load requirements. It operates at a rated voltage of up to 690 Volts AC (VAC), making it suitable for high-demand settings. The breaker boasts an impressive breaking capacity of 66 kiloamperes (kA), providing robust protection against potential overloads or short circuits.
Safety and reliability are further enhanced by its rated impulse withstand voltage of 12 kilovolts (kV) and a rated insulation voltage of 1000 VAC, ensuring the circuit breaker can handle transient overvoltages effectively. Additionally, the device's ability to withstand short-time currents up to 50 kA highlights its resilience under extreme conditions.
Equipped with an Ekip Touch LSIG trip unit, this ACB provides advanced protection functionalities including Long time, Short time, Instantaneous, and Ground fault protection. This ensures that your system remains safeguarded against various types of electrical faults while maintaining operational efficiency.
The frame size E1.2 indicates a compact yet sturdy construction suitable for different installation scenarios without compromising performance. With four poles available, this circuit breaker supports balanced load distribution across phases.
From an installation standpoint, the horizontal rear spread terminal type simplifies connections in setups where space optimization is essential. Furthermore, adherence to IEC 309 standards assures compliance with international safety and quality benchmarks.
One factor often considered in product selection is power loss; this model has been designed with efficiency in mind, exhibiting a power loss rate of just 244 Watts (W). This minimizes energy wastage while maintaining optimal functionality within your electrical infrastructure.
In summary, this Motor Operated ACB stands out as a dependable choice for those seeking versatility combined with stringent safety measures in their electrical systems. Its comprehensive feature set addresses both performance needs and regulatory compliance—making it an ideal component for modern industrial applications requiring robust circuit protection solutions.
