Specifications

Size of Frame	E1.2
G (0.1 to 1 x In) - I4 (A)	160-1600
I (1.5 to 15 x In) - I3 (A)	2400-24000
L (0.4 to 1 x In) - I1 (A)	640-1600
No. of Poles	3P
Power Loss (W)	400
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Uninterrupted Current - Iu (A)	1600
S (0.6 to 10 x In) - I2 (A)	960-16000
Breaking Capacity 415V AC - Icu (kA)	66
Poles	3P
Breaking Capacity (kA)	66 @415V AC
Current Rating (A)	1600
Trip Unit - Electronic	EKIP Touch LSIG
AC Voltage (V)	690
Frame	E1.2
Icw (kA/1s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	1600

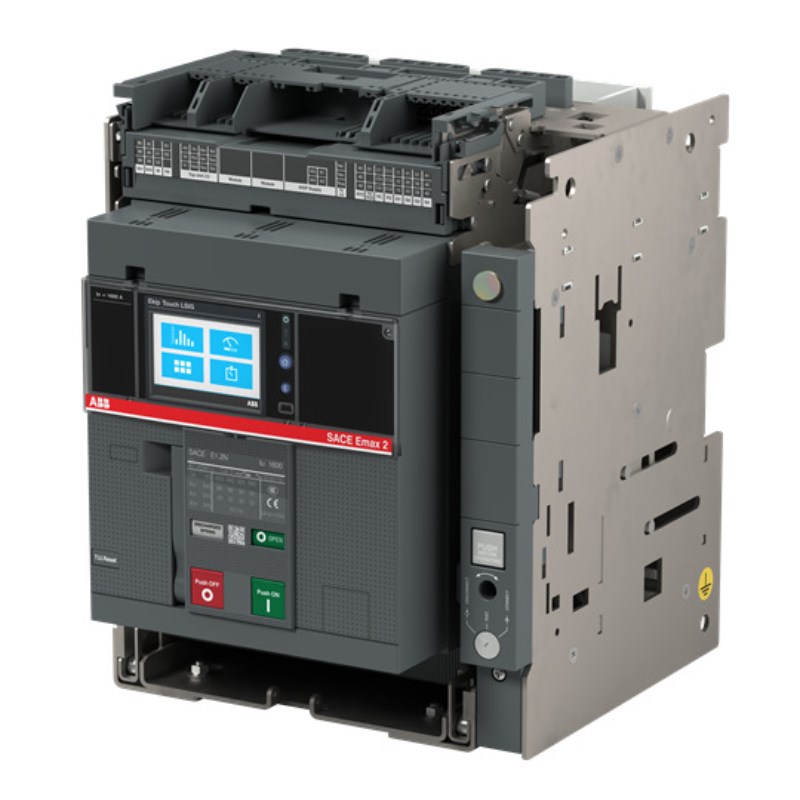

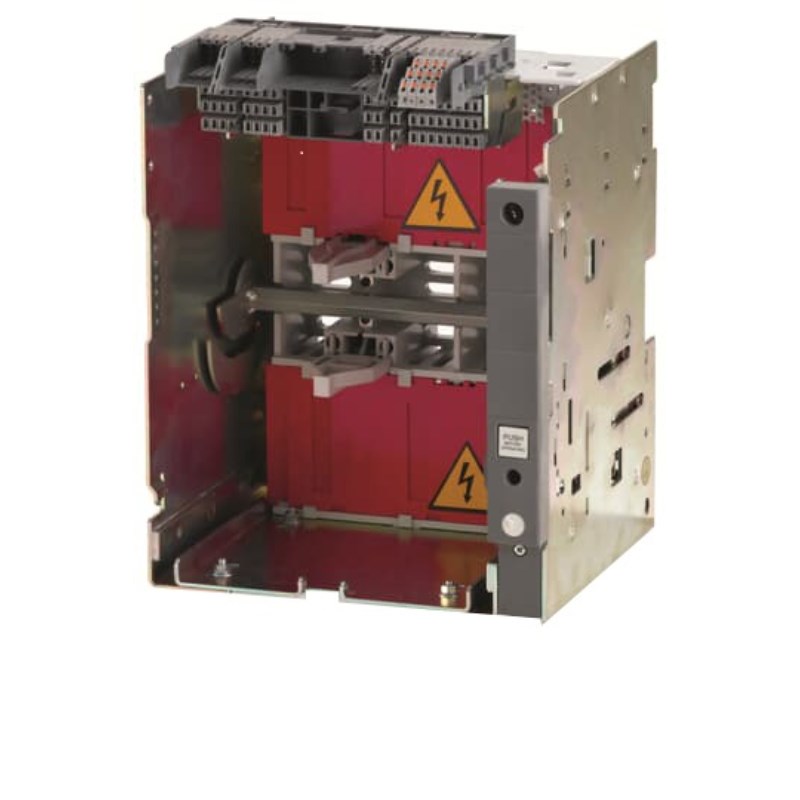

Product Type	Low Voltage Air Circuit Breaker With Fixed Part
Brand	ABB
Breaking Capacity	66 kA
Component Type	Withdrawable
Frame Size	E1.2
Number of Poles	3
Power Loss	400 W
Rated Current	640-1600 A
Rated Impulse Withstand Voltage	12 kV
Rated Insulation Voltage	1000 VAC
Rated Short Time Withstand Current	50 kA
Rated Voltage	690 VAC
Standards and Approvals	IEC 309
Terminal Type	Horizontal Rear Spread
Trip Unit	Ekip Touch LSIG
Version	Withdrawable

Description

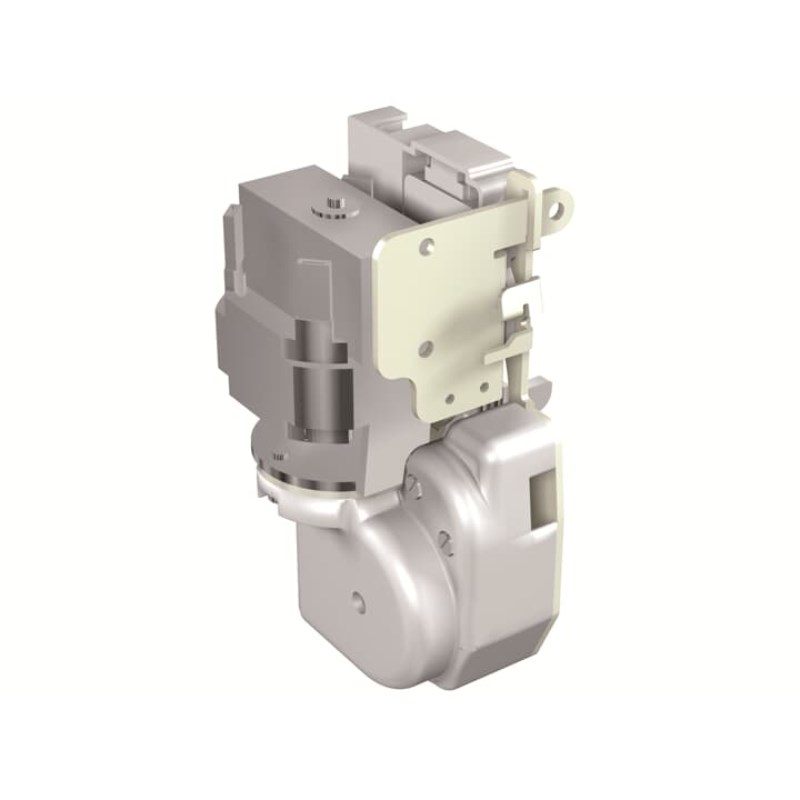

The ACB E1.2N is a 3P circuit breaker with a rated current (In) of 1600A. It has an Icu rating of 66kA at 415V AC and a rated short-time withstand current Icw (1s) of 50kA. The circuit breaker features a withdrawable auto EKIP touch LSIG trip unit, shunt opening and closing capabilities, and a motor operator that operates on 110-120VAC/DC. It comes complete with WMP+FP+YO+YC+MOP.
