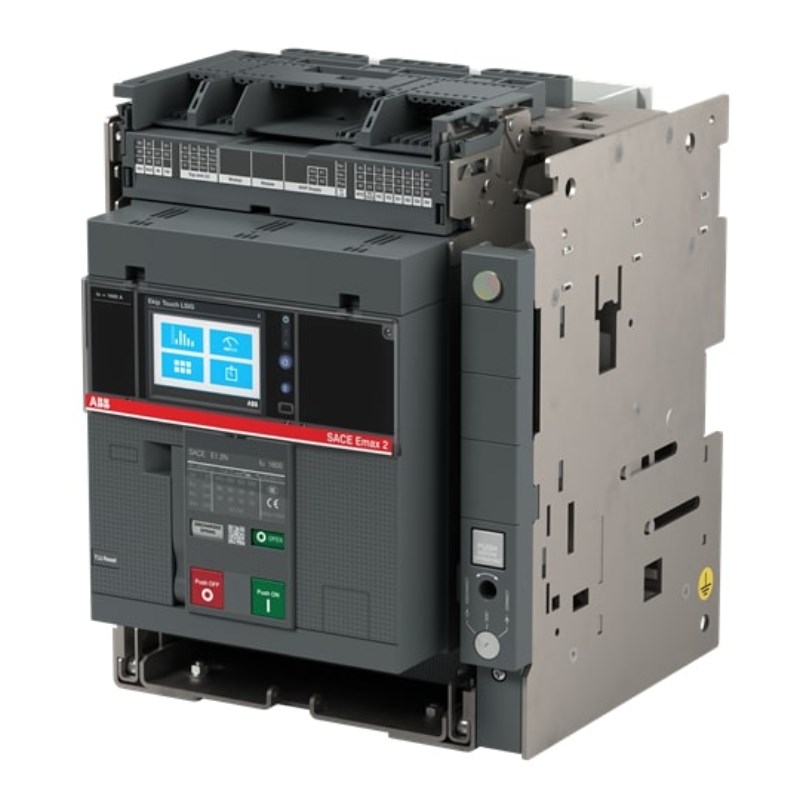

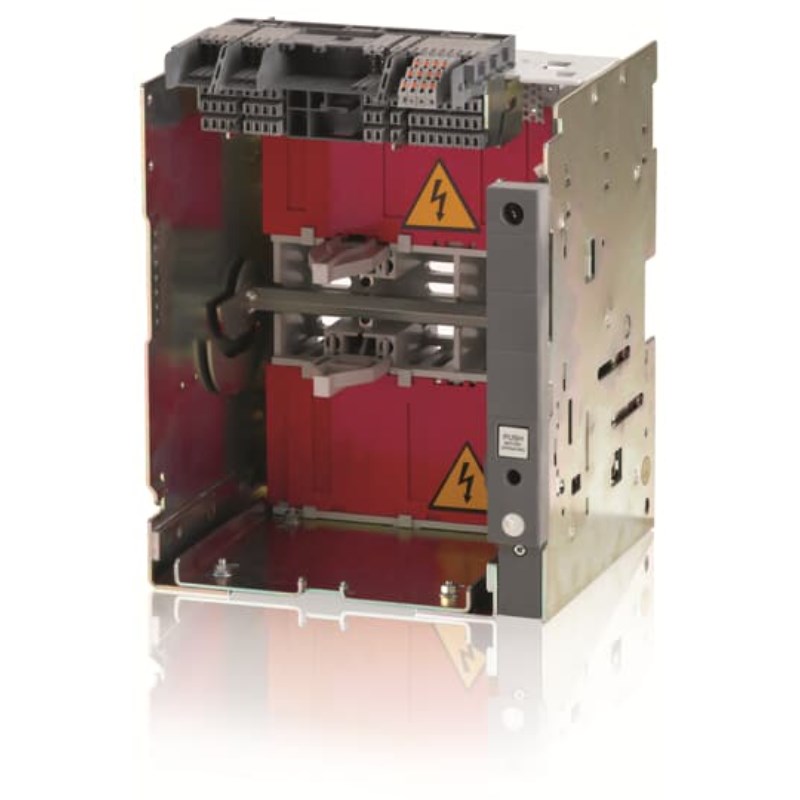

ABB E1N38WO415K Low Voltage ACB W/Fixed Part 320-800A 3-P 66kA 380-415VAC Shunt Opening E1.2 Ekip Touch LSIG

Product Code: E1N38WO415K

  • Automatic ACB for 320-800A applications
  • Rated voltage up to 690 VAC
  • Ekip Touch LSIG trip unit included
  • Breaking capacity of 66 kA
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Size of Frame E1.2
G (0.1 to 1 x In) - I4 (A) 80-800
I (1.5 to 15 x In) - I3 (A) 1200-12000
L (0.4 to 1 x In) - I1 (A) 320-800
No. of Poles 3P
Power Loss (W) 100
Rated Current (A) 800
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 50
Rated Uninterrupted Current - Iu (A) 800
S (0.6 to 10 x In) - I2 (A) 480-8000
Breaking Capacity 415V AC - Icu (kA) 66
Poles 3P
Breaking Capacity (kA) 66 @415V AC
Current Rating (A) 800
Trip Unit - Electronic EKIP Touch LSIG
AC Voltage (V) 690
Frame E1.2
Icw (kA/1s) - Short-time Withstand Current Rating 50
Iu - Uninterrupted Current Rating (A) 800
Product Type Low Voltage Air Circuit Breaker With Fixed Part
Brand ABB
Breaking Capacity 66 kA
Component Type Withdrawable
Frame Size E1.2
Number of Poles 3
Power Loss 100 W
Rated Current 320-800 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 VAC
Rated Short Time Withstand Current 50 kA
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Terminal Type Horizontal Rear Spread
Trip Unit Ekip Touch LSIG
Version Withdrawable

Description

The ACB E1.2N is a 3P circuit breaker with a rated current of 800A. It has an Icu rating of 66kA at 415V AC, indicating its ability to interrupt short-circuit currents. The circuit breaker also has a rated short-time withstand current, Icw (1s), of 50kA. It features a withdrawable auto EKIP touch LSIG trip unit, which provides protection against overload and short circuits. The shunt opening range for this circuit breaker is 380-415VAC. The ACB E1.2N comes complete with WMP+FP+YO accessories.
