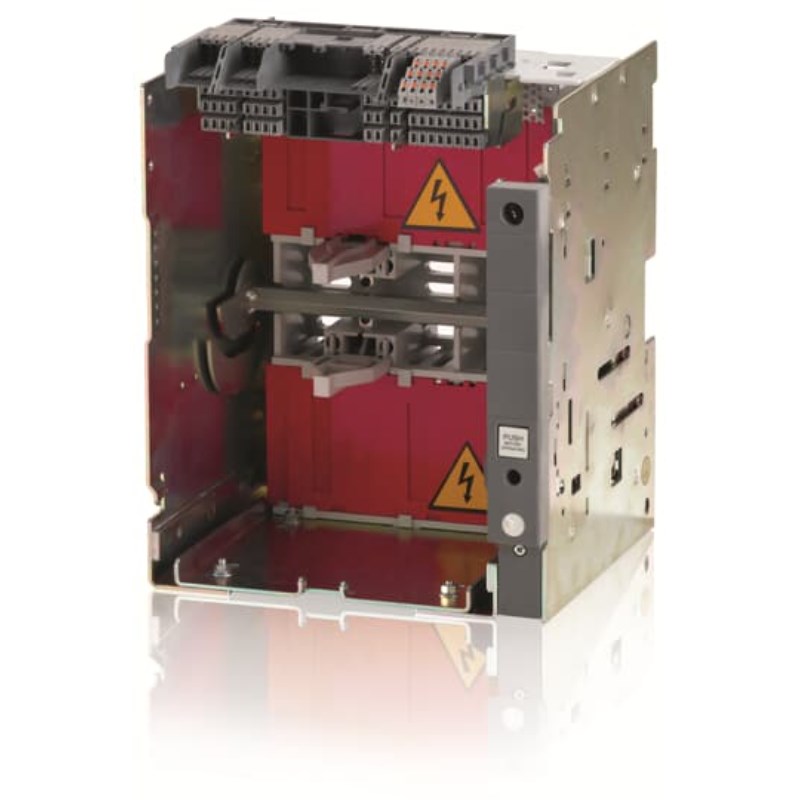

When it comes to selecting a reliable and robust Motor Operated Air Circuit Breaker (ACB), this model stands out with its impressive specifications tailored for industrial and commercial applications. Designed to meet the rigorous demands of high-performance environments, this ACB offers a comprehensive solution for electrical protection and control.
With a rated current range of 320-800 A, this ACB is versatile enough to suit various operational requirements while ensuring optimal performance. It boasts a rated impulse withstand voltage of 12 kV, providing solid protection against transient overvoltages that can occur in complex electrical systems.
The breaker is engineered with a rated insulation voltage of 1000 VAC, which ensures safety and reliability under normal operating conditions. Furthermore, its rated short-time withstand current of 50 kA highlights its ability to handle significant fault currents without compromising system integrity.
Operating at a rated voltage of 690 VAC, this ACB is well-suited for many industrial applications where higher voltages are prevalent. The Ekip Touch LSIG trip unit enhances the functionality by offering advanced protection features such as long-time (L), short-time (S), instantaneous (I), and ground fault (G) protections. This ensures that your system remains safeguarded against various fault scenarios.
In terms of power efficiency, the product maintains an acceptable power loss value at just 100 W, minimizing energy wastage during operation. Its three-pole configuration makes it suitable for balanced load distribution across phases in three-phase systems.
The breaking capacity stands at an impressive 66 kA, signifying its capability to interrupt high levels of prospective fault current effectively—an essential feature for maintaining system stability during overload or short circuit conditions.
Its frame size E1.2 provides compactness without sacrificing performance or durability—a key consideration when space constraints are present in equipment rooms or panels. Additionally, the horizontal rear spread terminal type facilitates straightforward integration into existing setups by allowing seamless connections from behind the panel.
Compliance with IEC 309 standards ensures that this ACB adheres to international benchmarks for safety and performance—reassuring users of its quality construction and dependable operation within diverse settings.
Whether you're upgrading existing infrastructure or installing new systems altogether—this motor-operated ACB delivers on all fronts: reliability efficiency adaptability—all backed by stringent compliance criteria designed specifically around modern-day industry needs.
