When it comes to selecting a reliable Motor Operated Air Circuit Breaker (ACB) for industrial and commercial applications, understanding the technical specifications is crucial. This ACB offers a robust solution with its versatile features designed to meet stringent operational demands.
With a rated current range of 800-2000 A, this ACB is well-suited for various load requirements, ensuring flexibility in different electrical installations. The rated impulse withstand voltage of 12 kV and rated insulation voltage of 1000 VAC highlight its capability to endure high voltage conditions without compromising safety or performance.
One of the standout features is its impressive short-time withstand current rating of 66 kA, which underscores its durability and reliability under fault conditions. Coupled with a breaking capacity also at 66 kA, this breaker ensures effective interruption of fault currents, protecting your system from potential damage.
The breaker operates at a rated voltage of 690 VAC, making it compatible with many standard industrial systems. Its advanced Ekip Touch LSIG trip unit provides precise protection by enabling settings for long time (L), short time (S), instantaneous (I), and ground fault (G) protection functions. This level of customization allows users to tailor the breaker’s response to specific application needs.
Power loss is an essential consideration in any electrical system; this model has been optimized with a power loss specification of just 450 W, contributing to overall energy efficiency. Its four-pole design ensures balanced load distribution across all phases, further enhancing operational stability.

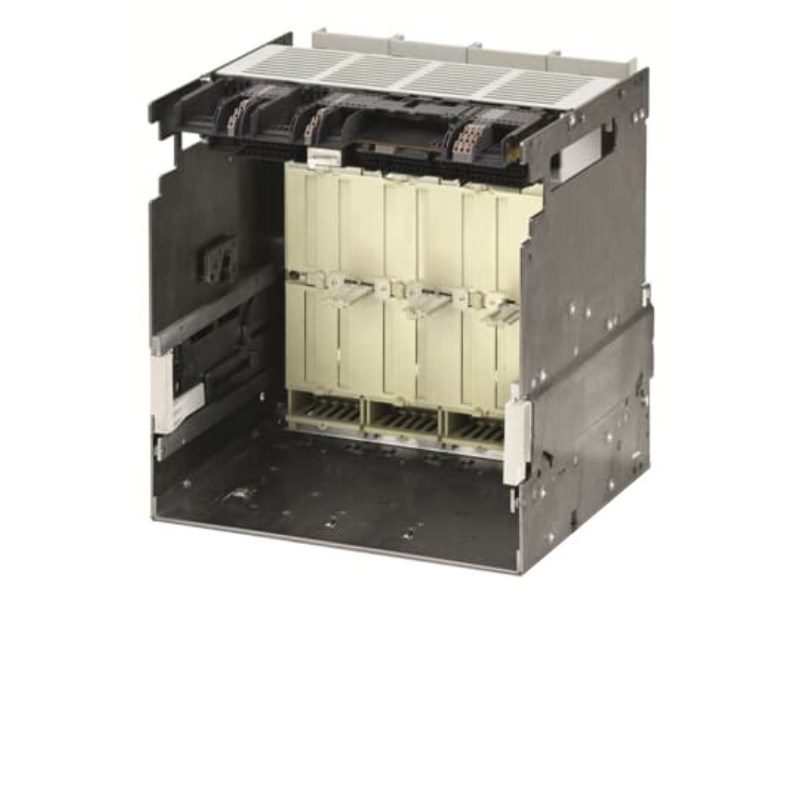

Designed with practicality in mind, the frame size E2.2 offers compactness without sacrificing performance attributes. Installation flexibility is facilitated by the horizontal rear spread terminal type, allowing seamless integration into existing setups or new installations.
Compliance with IEC 309 standards assures users that this ACB meets international quality and safety benchmarks, providing peace of mind during operation.
In summary, this Motor Operated ACB combines robust construction with advanced protective features suitable for demanding environments where reliability cannot be compromised. Whether upgrading existing systems or designing new projects, consider these specifications carefully to ensure alignment with your technical requirements and operational goals.
