In the world of industrial and commercial electrical systems, precision and reliability are paramount. The Motor Operated Air Circuit Breaker (ACB) under discussion here is a robust solution designed to meet demanding requirements with efficiency and safety.
First, let's delve into its core specifications. This ACB supports a rated current range from 1000 to 2500 A, providing flexibility for various applications. With a rated voltage of 690 VAC, it is well-suited for medium-voltage applications commonly found in industrial settings.
Safety and durability are further enhanced by its rated impulse withstand voltage of 12 kV and rated insulation voltage of 1000 VAC. These features ensure that the circuit breaker can handle high voltage surges without compromising performance or safety.
A key feature of this product is its impressive breaking capacity of 66 kA. This means it can safely interrupt fault currents up to this level, protecting your equipment from potential damage due to short circuits or overloads. Coupled with a rated short-time withstand current also at 66 kA, this ACB provides robust protection against transient faults.
The trip unit integrated into this model is the Ekip Touch LSIG type. Known for its advanced functionality, the Ekip Touch LSIG offers comprehensive protection through long-time (L), short-time (S), instantaneous (I), and ground fault (G) protection modes. Its user-friendly interface allows easy configuration and monitoring, ensuring optimal performance tailored to your specific needs.

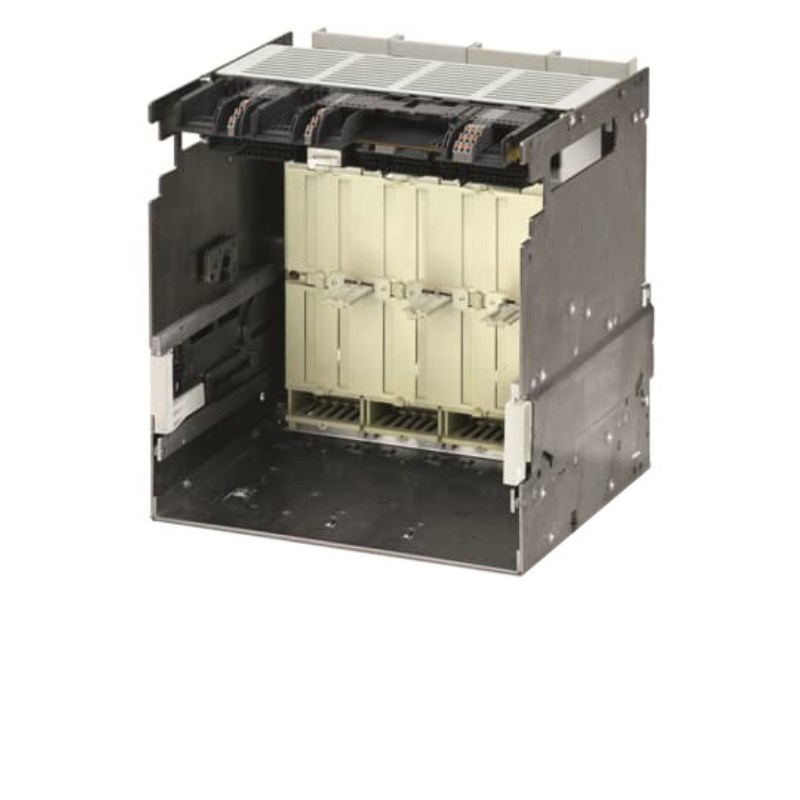

Designed with practicality in mind, the ACB features a frame size classified as E2.2 and comes equipped with horizontal rear spread terminals for straightforward installation within switchboards or enclosures.
This motor-operated ACB adheres to IEC 309 standards, reflecting its compliance with international quality benchmarks—a crucial consideration for professionals seeking reliable components that meet global industry standards.
Despite its powerful capabilities, the power loss associated with this device is maintained at an efficient level of 550 W—demonstrating an effective balance between performance and energy consumption.
Finally, it's important to note that this product comes as a four-pole configuration which enhances versatility across different system designs by allowing neutral pole switching where necessary.
In summary, if you're searching for an air circuit breaker that combines high-current capacity with advanced protective features while adhering strictly to international standards—this might just be what you need on your next project site!
