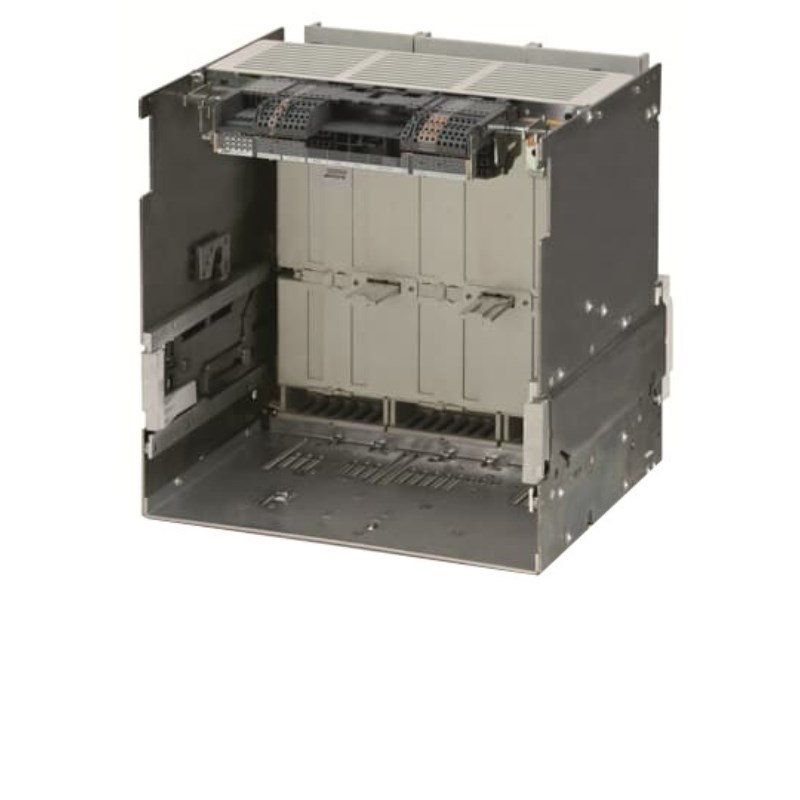

ABB E4H340WO30K ACB W/Fixed Part 1600-4000A 3-P 100kA 30VAC/DC Shunt Opening E4.2 Ekip Touch LSIG

Product Code: E4H340WO30K

  • Automatic ACB with 1600-4000 A range
  • Withstands impulse voltage up to 12 kV
  • Ekip Touch LSIG trip unit for advanced protection
  • Handles short time currents up to 85 kA
  • Breaking capacity of 100 kA
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Size of Frame E4.2
G (0.1 to 1 x In) - I4 (A) 400-4000
I (1.5 to 15 x In) - I3 (A) 6000-60000
L (0.4 to 1 x In) - I1 (A) 1600-4000
No. of Poles 3P
Power Loss (W) 900
Rated Current (A) 4000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 4000
S (0.6 to 10 x In) - I2 (A) 2400-40000
Breaking Capacity 415V AC - Icu (kA) 100
Poles 3P
Breaking Capacity (kA) 100 @415V AC
Current Rating (A) 4000
Trip Unit - Electronic EKIP Touch LSIG
AC Voltage (V) 690
Frame E4.2
Icw (kA/1s) - Short-time Withstand Current Rating 85
Iu - Uninterrupted Current Rating (A) 4000
Product Type Circuit Breaker
Brand ABB
Breaking Capacity 100 kA
Component Type Withdrawable
Frame Size E4.2
Number of Poles 3
Power Loss 900 W
Rated Current 1600-4000 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 VAC
Rated Short Time Withstand Current 85 kA
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Terminal Type Horizontal Rear Spread
Trip Unit Ekip Touch LSIG
Version Withdrawable

Description

The ACB E4.2H is a 3P circuit breaker with a rated current of 4000A. It has an Icu rating of 100kA at 415V AC, indicating its ability to interrupt short-circuit currents. The circuit breaker also has a rated short-time withstand current, Icw (1s), of 85kA. The ACB E4.2H features a withdrawable auto EKIP touch LSIG trip unit, which provides protection against overloads and short circuits. It has a shunt opening of 30VAC/DC. This circuit breaker is complete with WMP+FP+YO components.
