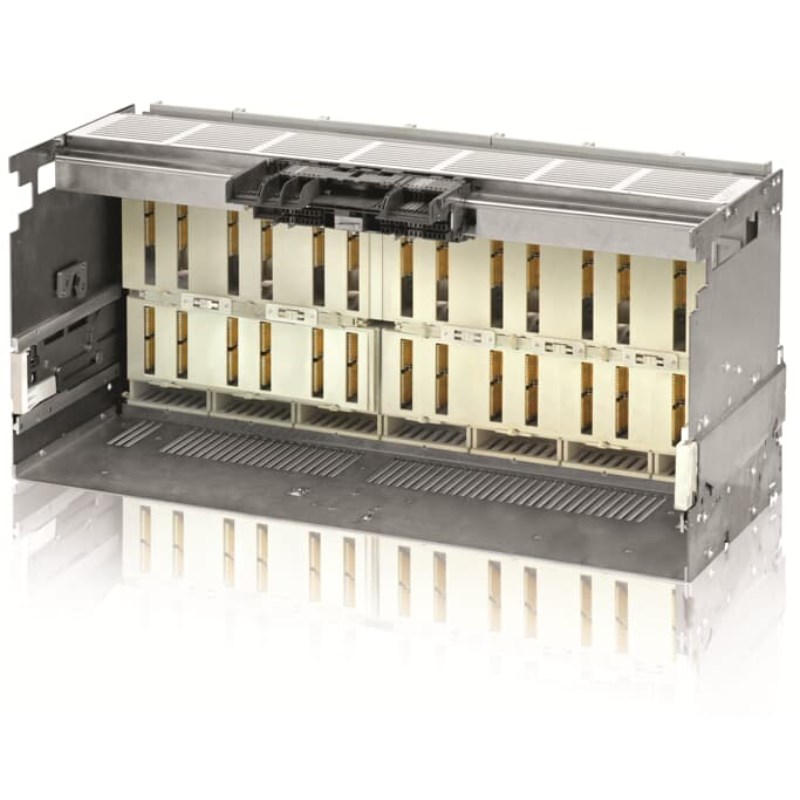

When you're in the market for a reliable and robust motor operated air circuit breaker (ACB) that meets industrial and commercial needs, this model is worth considering. Designed to handle demanding electrical environments, it offers a range of features that ensure safety and efficiency.
Starting with its rated current capacity, this ACB supports between 2000 to 5000 Amperes, making it suitable for high-demand applications. It operates efficiently at a rated voltage of 690 VAC, aligning with common industrial standards. The rated insulation voltage stands at 1000 VAC, providing an extra layer of security against electrical faults.
One of the standout aspects is its impressive breaking capacity and short time withstand current rating of 100 kA. These specifications indicate that the ACB can handle significant fault currents without compromising its integrity or performance. With a rated impulse withstand voltage of 12 kV, it assures resilience against transient overvoltages often encountered in power systems.
The trip unit incorporated into this ACB is the Ekip Touch LSIG type. This advanced trip unit provides comprehensive protection by integrating long-time (L), short-time (S), instantaneous (I), and ground fault (G) protection functions. Such versatility ensures tailored protection settings suited to specific operational requirements.
Power loss during operation is measured at 850 W, which reflects its efficiency while maintaining optimal functionality across various load conditions. The frame size E6.2 indicates compatibility with existing setups needing similar dimensions or upgrades.
This model comes equipped with four poles and utilizes horizontal rear spread terminals for easy integration into existing systems or new installations where space constraints might be a consideration.
Compliance with IEC 309 standards underscores its adherence to international safety and performance benchmarks, ensuring peace of mind regarding quality assurance and reliability in demanding environments.
Overall, this motor operated ACB presents itself as a capable solution for those seeking dependable circuit protection within medium to large scale industrial applications.
