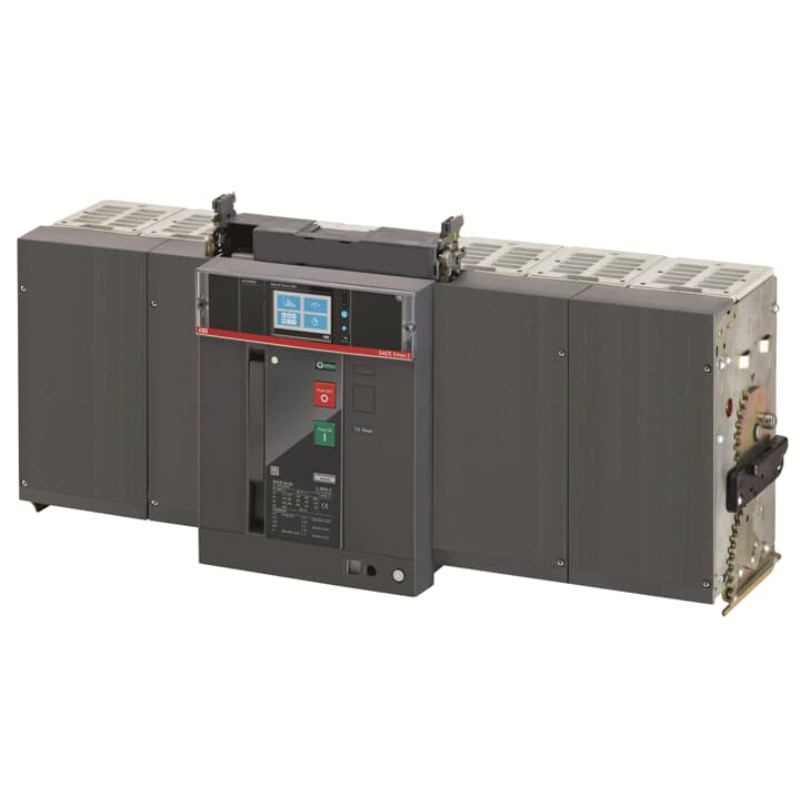

When it comes to ensuring reliability and safety in industrial and commercial electrical systems, the Motor Operated Air Circuit Breaker (ACB) is a robust choice. With a rated current range of 2000-5000 A, this device is designed to handle substantial power demands effectively.
The product's rated impulse withstand voltage of 12 kV and insulation voltage of 1000 VAC underscore its capability to endure high-voltage conditions while maintaining operational integrity. These features are crucial for systems that require consistent performance under varying electrical loads.
One of the standout specifications is its impressive breaking capacity of 100 kA, paired with a short time withstand current rating also at 100 kA. These attributes ensure that the ACB can safely interrupt fault currents without compromising system stability or safety, making it suitable for environments where high fault levels may occur.
Equipped with an Ekip Touch LSIG trip unit, this ACB provides advanced protection features including long-time, short-time, instantaneous, and ground fault protection. This ensures not only enhanced safety but also precise control over circuit parameters, aiding in efficient energy management.
The frame size E6.2 accommodates various installation needs while maintaining structural robustness. Featuring four poles and horizontal rear spread terminals, this configuration supports flexible integration into existing setups without necessitating significant modifications.
Power loss has been minimized to 850 W, reflecting efficient design considerations that prioritize energy conservation without sacrificing functionality. Compliance with IEC 309 standards further guarantees adherence to international safety and performance benchmarks.
This ACB is engineered for seamless operation within systems up to a rated voltage of 690 VAC, providing versatility across different applications from industrial plants to large commercial facilities. Its construction caters specifically to users seeking reliable circuit protection solutions capable of handling demanding electrical environments efficiently.
In summary, this Motor Operated ACB offers comprehensive technical advantages tailored for professionals who demand durability and precision in their electrical infrastructure components. The thoughtful engineering behind every aspect ensures you’re equipped with a dependable solution that meets stringent industry requirements seamlessly.
