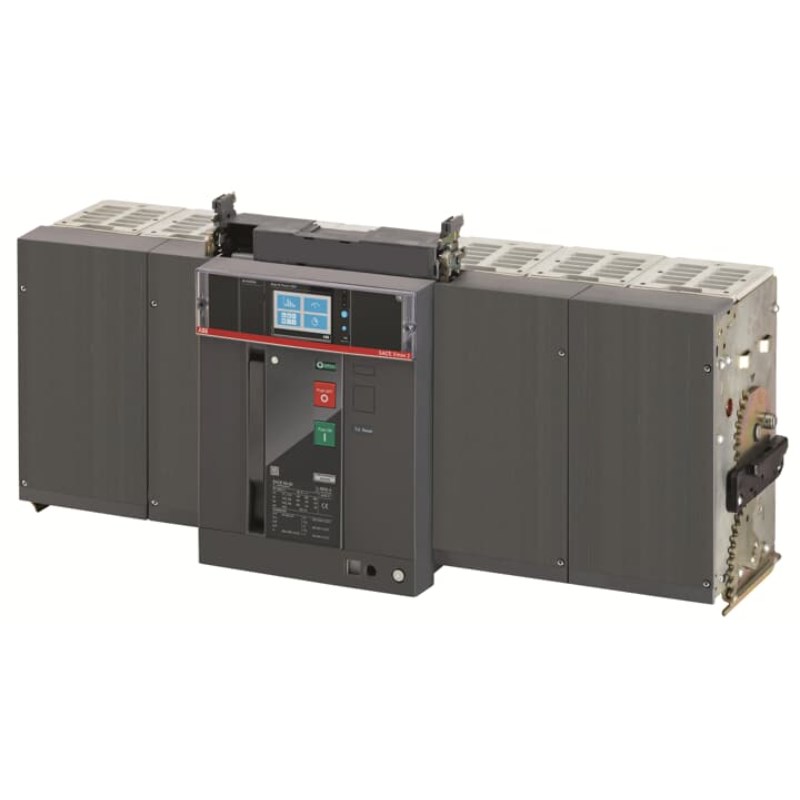

For those navigating the complexities of industrial and commercial electrical systems, the Automatic ACB with a frame size of E6.2 is a robust choice designed to meet demanding requirements. This circuit breaker operates efficiently within a rated current range of 2000 to 5000 A, catering to high-capacity applications.
The device's resilience is underscored by its rated impulse withstand voltage of 12 kV and an insulation voltage capability of up to 1000 VAC, ensuring reliable performance even in challenging environments. With a breaking capacity and short-time withstand current both rated at an impressive 100 kA, this breaker is engineered for durability and safety under fault conditions.
Operating at a rated voltage of 690 VAC, this ACB integrates the advanced Ekip Touch LSIG trip unit. This feature provides precise protection controls including long-time, short-time, instantaneous, and ground fault functions—essential for safeguarding your electrical systems against various anomalies.
A notable aspect is its power loss rating of 850 W which indicates efficient energy management while maintaining operational integrity. The four-pole configuration further enhances its versatility across different network arrangements.
Installation flexibility is facilitated by the horizontal rear spread terminal type, allowing seamless integration into existing setups without extensive modifications. Compliance with IEC 309 standards assures you that this product adheres to international benchmarks for safety and performance.
This Automatic ACB stands as a reliable component in any sophisticated electrical infrastructure where consistency and adherence to technical specifications are paramount.
