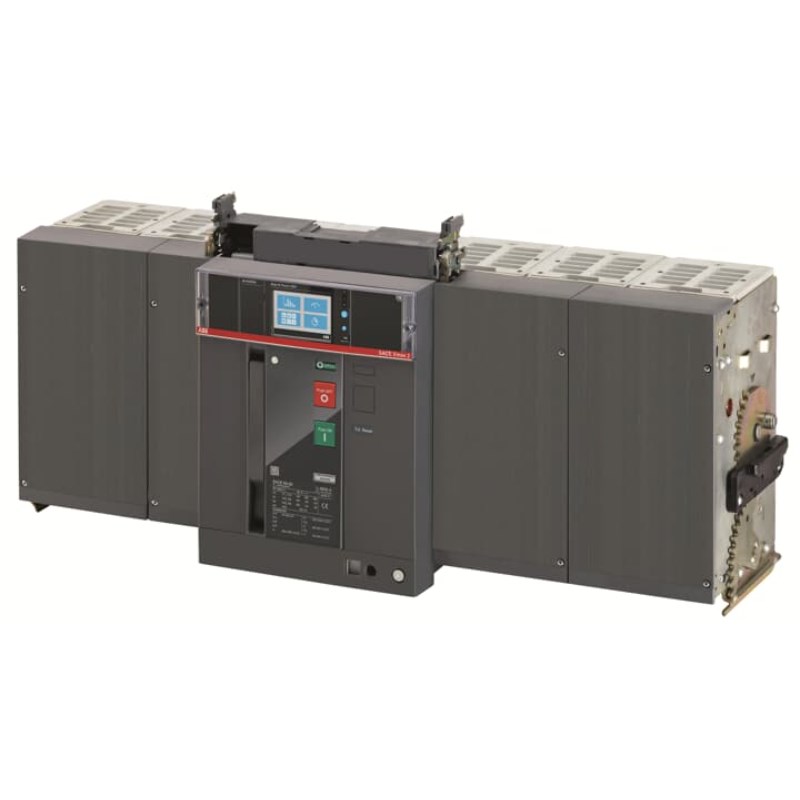

When selecting an Automatic Air Circuit Breaker (ACB) for industrial or commercial applications, it's essential to focus on the technical specifications that ensure reliability and safety. This ACB is designed with a robust set of features tailored to meet demanding electrical environments.
The ACB offers a rated current range from 2000 to 5000 Amperes, making it versatile for various heavy-duty applications. With its rated impulse withstand voltage at 12 kV and a rated insulation voltage of 1000 VAC, this circuit breaker ensures excellent protection against overvoltage conditions, providing peace of mind in high-stakes environments.
Operating at a rated voltage of 690 VAC, this ACB is suitable for modern installations where higher voltages are common. The device's breaking capacity and short time withstand current are both impressive at 100 kA, indicating its ability to handle significant fault currents without compromising performance or safety.
The inclusion of the Ekip Touch LSIG trip unit enhances operational efficiency by offering advanced protection features such as long-time, short-time, instantaneous, and ground fault functions. This level of control allows for precise adjustments based on specific application needs.
With four poles available in its design, the ACB provides comprehensive coverage across all phases of your electrical system. The frame size E6.2 further supports its use in large-scale operations where space optimization is crucial without sacrificing performance capabilities.
Power loss stands at 850 W—a critical factor when considering energy management and cost-effectiveness over the product's lifecycle. Designed with horizontal rear spread terminals, installation becomes straightforward while maintaining connectivity integrity.
Adhering to IEC 309 standards ensures that this ACB meets international benchmarks for quality and safety—an assurance that underscores its suitability for diverse global markets including Australia’s rigorous standards.
In summary, this Automatic ACB combines high-performance metrics with thoughtful design elements suited for demanding industrial settings where reliability is paramount.
