ABB E6H363WC250K ACB W/Fixed Part 2520-6300A 3-P 100kA 240-250VAC/DC Shunt Closing E6.2 Ekip Touch LSIG

Product Code: E6H363WC250K

  • Automatic ACB for high current applications
  • Rated current from 2520 to 6300 A
  • Ekip Touch LSIG trip unit for protection
  • Breaking capacity of 100 kA
  • Complies with IEC 309 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Size of Frame E6.2
G (0.1 to 1 x In) - I4 (A) 630-6300
I (1.5 to 15 x In) - I3 (A) 9450-94500
L (0.4 to 1 x In) - I1 (A) 2520-6300
No. of Poles 3P
Power Loss (W) 1550
Rated Current (A) 6300
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 100
Rated Uninterrupted Current - Iu (A) 6300
S (0.6 to 10 x In) - I2 (A) 3780-63000
Breaking Capacity 415V AC - Icu (kA) 100
Poles 3P
Breaking Capacity (kA) 100 @415V AC
Current Rating (A) 6300
Trip Unit - Electronic EKIP Touch LSIG
AC Voltage (V) 690
Frame E6.2
Icw (kA/1s) - Short-time Withstand Current Rating 100
Iu - Uninterrupted Current Rating (A) 6300
Product Type Circuit Breaker
Brand ABB
Breaking Capacity 100 kA
Component Type Withdrawable
Frame Size E6.2
Number of Poles 3
Power Loss 1550 W
Rated Current 2520-6300 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 VAC
Rated Short Time Withstand Current 100 kA
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Terminal Type Horizontal Rear Spread
Trip Unit Ekip Touch LSIG
Version Withdrawable

Description

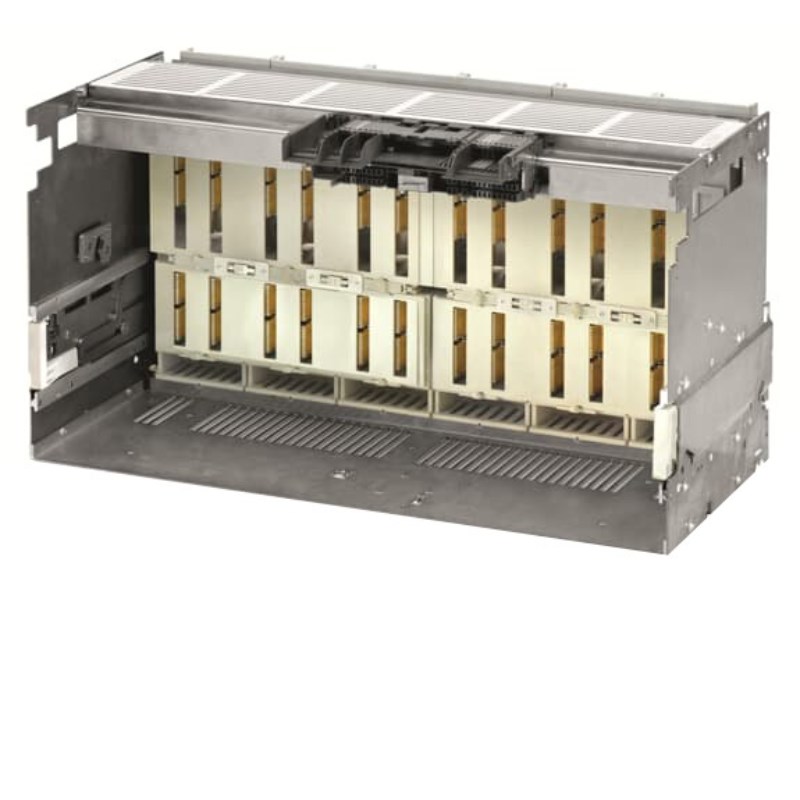

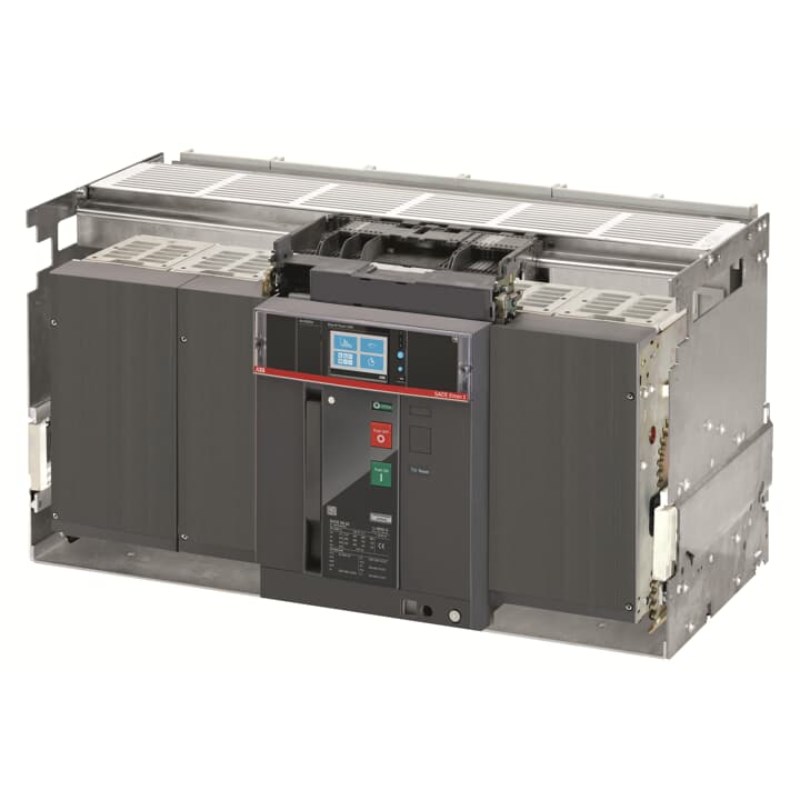

The ACB E6.2H is a 6300A 3P rated current circuit breaker. It has a breaking capacity of 100kA at 415V AC and a short-time withstand current of 100kA for 1 second. The circuit breaker features a withdrawable auto EKIP Touch LSIG trip unit with horizontal rear terminals. It also includes a shunt closing release that operates on either 240-250V AC or DC. The product comes complete with WMP+FP components.
