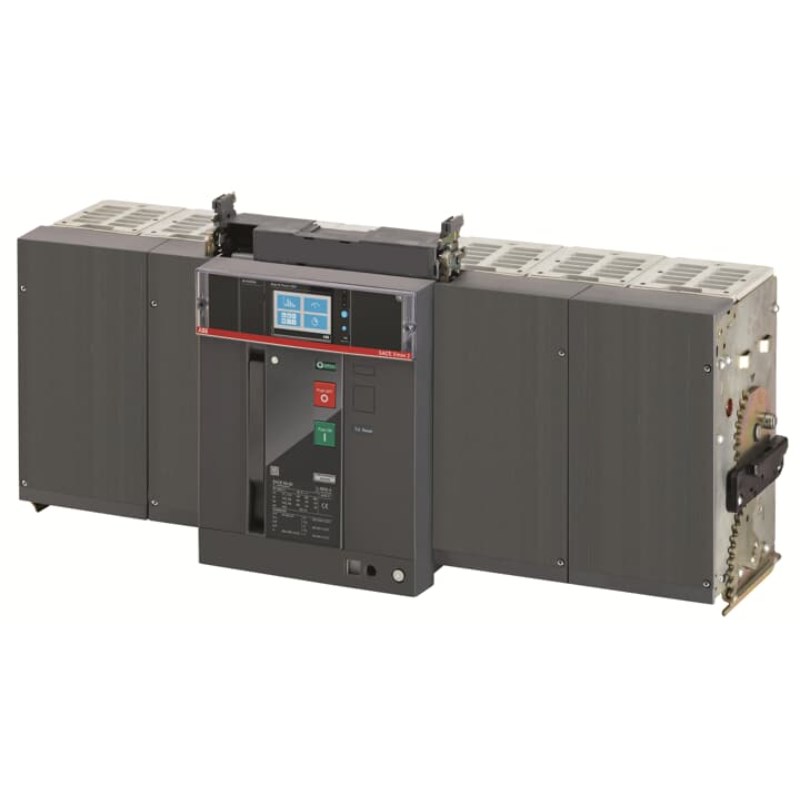

This Automatic Air Circuit Breaker (ACB) is engineered to meet the rigorous demands of industrial and commercial applications, offering reliability and robust performance. With a rated current ranging from 2520 A to 6300 A, it caters effectively to high-power systems, ensuring optimal protection and operational efficiency.
The breaker boasts a rated impulse withstand voltage of 12 kV and a rated insulation voltage of 1000 VAC, making it suitable for handling significant electrical loads while maintaining safety standards. Its ability to endure short-time currents up to 100 kA highlights its resilience in challenging environments where high fault levels are common.
Designed with versatility in mind, this ACB operates at a rated voltage of 690 VAC. It features an advanced Ekip Touch LSIG trip unit that provides precise protection functions tailored to your system's specific needs. This ensures enhanced safety by preventing overloads, short circuits, and ground faults efficiently.
Power loss is minimized at just 1550 W, reflecting the product's energy-efficient design without compromising on its protective capabilities. The four-pole configuration offers comprehensive coverage for multi-phase systems, enhancing the reliability of power distribution networks.
With a frame size classified as E6.2 and horizontal rear spread terminals, this circuit breaker is designed for seamless integration into existing setups or new installations. The terminal design facilitates easy connection while maintaining secure contact points for stable operation.
Adhering strictly to IEC 309 standards and approvals underscores its commitment to quality and international compliance benchmarks—ensuring users receive a product that meets global expectations for safety and performance.
Overall, this Automatic ACB combines technical excellence with practical functionality—making it an ideal choice for professionals seeking dependable solutions in demanding electrical environments.
