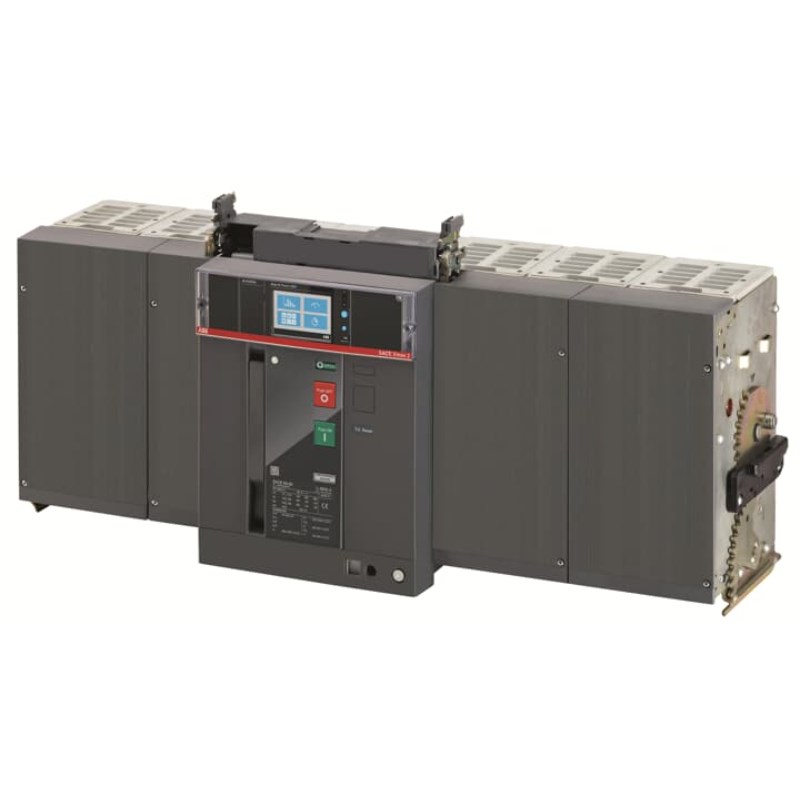

When you're in the market for a reliable and robust Automatic Air Circuit Breaker (ACB), it's essential to consider a product that meets your technical specifications without compromise. This ACB is engineered to deliver outstanding performance, making it an ideal choice for industrial and commercial applications.
With a rated current range of 2520-6300 A, this ACB is designed to handle high-capacity electrical systems efficiently. It stands out with its impressive rated impulse withstand voltage of 12 kV, ensuring resilience against transient overvoltages. The rated insulation voltage of 1000 VAC further enhances safety by providing excellent dielectric strength.
One of the key features is its rated short-time withstand current of 100 kA, which ensures the circuit breaker's ability to sustain fault levels for a specified duration without damage. Complementing this is the breaking capacity also at 100 kA, offering superior protection by interrupting fault currents effectively.
The device operates at a rated voltage of 690 VAC and incorporates an advanced Ekip Touch LSIG trip unit. This intelligent system provides comprehensive protection through Long-time, Short-time, Instantaneous, and Ground fault functions, allowing for precise adjustments tailored to your specific application needs.
Power loss in this breaker is kept minimal at just 1550 W, optimizing energy efficiency while maintaining effective operation. With four poles available, it offers versatile connectivity options suitable for various configurations.
Designed with an E6.2 frame size and horizontal rear spread terminals, installation becomes straightforward and adaptable to existing setups or new installations alike. Compliance with IEC 309 standards assures adherence to international safety and performance benchmarks.
In summary, this Automatic ACB blends cutting-edge technology with robust construction to meet demanding electrical requirements reliably. Whether upgrading existing infrastructure or planning new projects, this circuit breaker provides peace of mind through consistent performance and comprehensive protection features—ensuring your operations run smoothly without unexpected interruptions.
