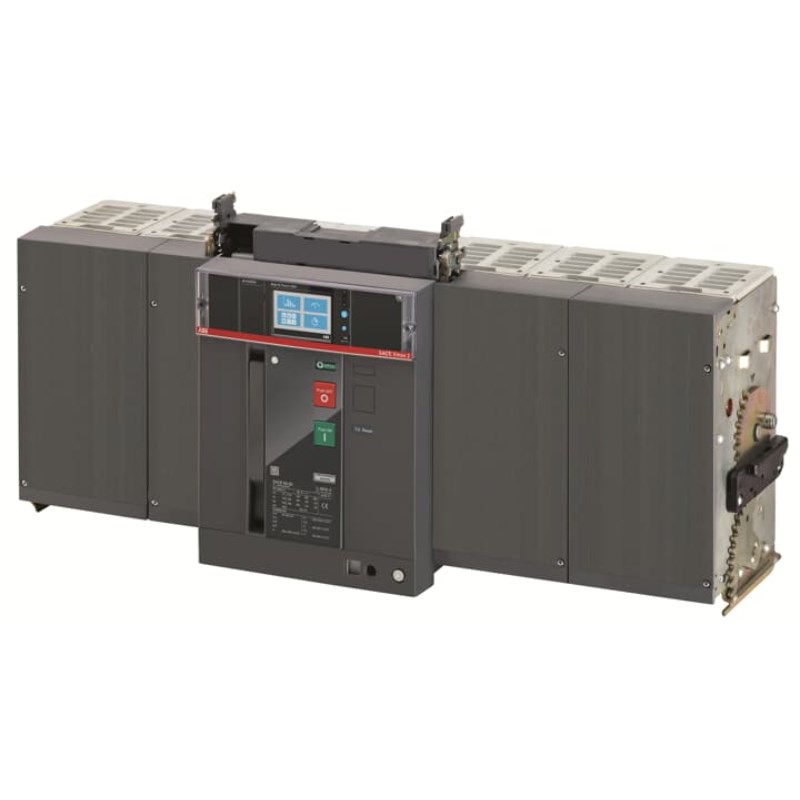

When it comes to ensuring the safety and efficiency of your electrical systems, selecting the right circuit breaker is crucial. The Motor Operated Air Circuit Breaker (ACB) with a frame size of E6.2 offers robust performance for industrial and commercial applications. Designed to handle demanding environments, this ACB provides reliable protection with its impressive specifications.
This ACB supports a rated current range from 2520 to 6300 A, making it suitable for high-capacity operations. With a rated voltage of 690 VAC and an insulation voltage of 1000 VAC, it's built to withstand substantial electrical loads while maintaining stability and safety in your system.
One of the standout features is its rated impulse withstand voltage of 12 kV. This ensures resilience against transient overvoltages often encountered in industrial settings. Additionally, the unit's breaking capacity stands at a formidable 100 kA, providing assurance that it can interrupt fault currents effectively without compromising on performance.
The ACB incorporates an Ekip Touch LSIG trip unit which enhances operational precision by offering comprehensive protection functions including long-time (L), short-time (S), instantaneous (I), and ground fault (G) protections. This functionality not only safeguards equipment but also optimizes system uptime by minimizing unnecessary trips.
For those concerned about energy efficiency, this model has a power loss rating of just 1550 W. It strikes a balance between operational capability and energy consumption—an important consideration for facilities looking to manage costs without sacrificing reliability.
The circuit breaker features four poles and utilizes horizontal rear spread terminals, facilitating seamless integration into existing setups while allowing straightforward maintenance access—a critical factor in minimizing downtime during service interventions.
Compliance with IEC 309 standards underscores its adherence to international quality benchmarks, assuring users that they are investing in equipment that meets rigorous safety criteria essential for modern electrical installations.
In summary, this Motor Operated ACB combines durability with advanced protective capabilities tailored for high-demand environments typical in Australia’s industrial sector. Whether you're upgrading existing infrastructure or designing new systems from scratch, this product offers the technical specifications necessary to meet stringent operational demands confidently.
