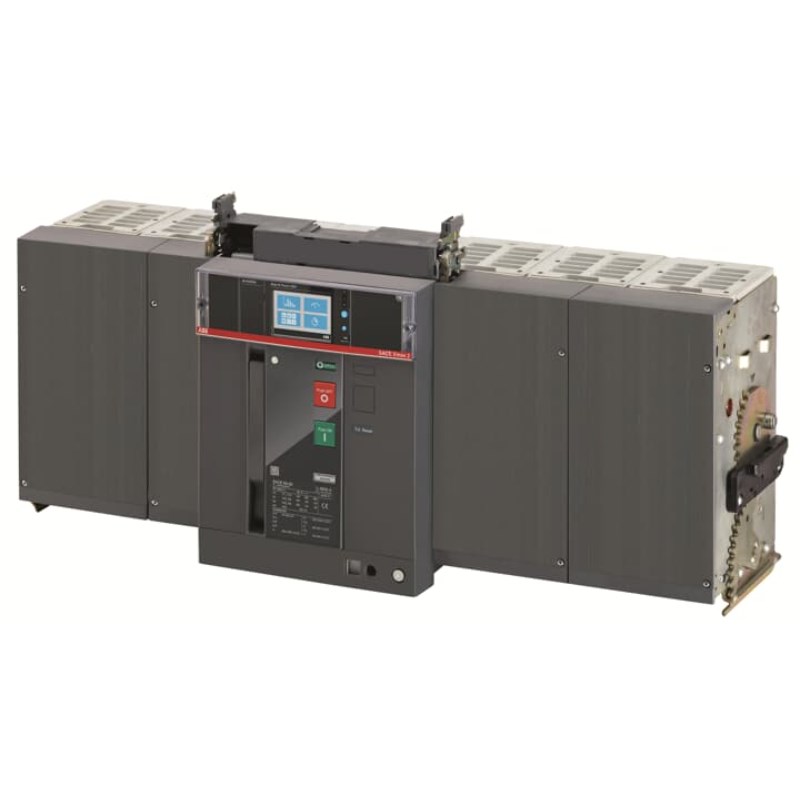

When it comes to industrial and commercial electrical systems, the choice of a reliable and robust Motor Operated Air Circuit Breaker (ACB) is crucial. This ACB is engineered to provide outstanding performance with its comprehensive technical specifications, making it suitable for demanding applications where reliability and safety are paramount.
This motor-operated ACB boasts an impressive rated current range of 2520-6300 Amperes, ensuring it can handle substantial electrical loads with ease. The breaker is designed to withstand high impulse voltages up to 12 kV, offering excellent protection against transient overvoltages that might occur in industrial settings.
With a rated insulation voltage of 1000 VAC and a rated operational voltage of 690 VAC, this ACB provides flexibility across various applications while maintaining optimal safety standards. Additionally, the breaker features a remarkable short-time withstand current rating of 100 kA, which ensures durability under fault conditions by allowing the system to endure high currents without damage.
The breaking capacity also stands at an impressive 100 kA, providing assurance that the circuit breaker can interrupt potentially dangerous fault currents effectively. Equipped with the Ekip Touch LSIG trip unit, users benefit from advanced protection functionalities including long-time delay (L), short-time delay (S), instantaneous (I), and ground fault protection (G).
Power loss in any circuit component is vital for energy efficiency considerations; this ACB has a power loss value of 1550 W. With four poles available in its design, it offers versatility for different wiring configurations often required in complex installations.
The frame size E6.2 indicates its compatibility within larger systems while maintaining a compact footprint relative to its capabilities. The horizontal rear spread terminal type facilitates straightforward connection arrangements particularly beneficial during installation or maintenance phases.
Adhering strictly to IEC 309 standards and approvals underscores this product's compliance with international safety benchmarks—an essential factor when selecting components for critical infrastructure projects.
In summary, whether you're upgrading existing infrastructure or planning new installations requiring robust circuit protection solutions capable of handling significant loads safely yet efficiently—this Motor Operated ACB presents itself as an exemplary choice given its extensive feature set tailored towards professional needs within Australia’s industrial landscape.
