ABB ATB1501E ALUMINIUM TERMINAL BLOCK EARTH 2 CONNECTIONS CABLE 150mm²

Product Code: ATB1501E

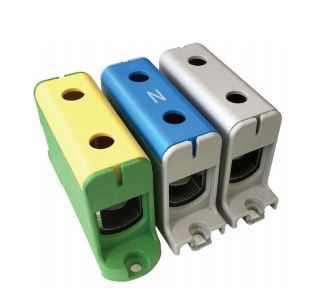

This aluminium terminal block is designed for earth connections and has 2 connection points. It can accommodate cable sizes up to 150mm² and is coloured yellow/green. The nominal current for copper cables is 320A and for aluminium cables is 290A, with a nominal insulation voltage of 600V. This terminal block is suitable for use with both copper and aluminium cables. The tin plating on the block prevents galvanic reactions. It features an internal barrier that allows for the connection of both aluminium and copper cables to a single block. The screw head size is 8mm, making it easy to mount on panels.

Technical Specifications

Brand ABB
Colour Yellow/Green
Maximum Cable Cross Section (mm²) 150
No. of Connections 2
Nominal Current (A) 320 (Cu)/290 (AL)
Nominal Insulation Voltage (V) 600
Screw Head Size (mm) 8
Tightening Torque (Nm) 14 (35-95mm²)/24 (120-150mm²)
