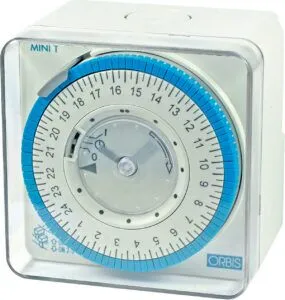

ORBIS ANALOG TIME SWITCH D/15MIN 1CO MINIT-QRD-230VAC

Product Code: MINIT-QRD-230VAC

This Analog Time Switch is designed for DIN Rail, Surface, and Panel Mount installation. It features a 100-hour battery back-up for uninterrupted operation. With a minimum switching time of 15 minutes, it ensures precise daily functioning. The switch has 1 changeover contact with a maximum current rating of 16A at 230VAC supply voltage.

Technical Specifications

Brand ORBIS
Battery Backup 100 hrs
Contacts 1CO
Degree of Protection IP20
Function Daily
Maximum Switching Current (A) 16
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 900
Mounting Type DIN Rail/Surface/Panel
No. of Switching Intervals 96 pins
Nominal Frequency (Hz) 50/60
Operational Temperature Range (°C) -10 to +45
Pollution Degree 2
Power Consumption (W) 0.5
Rated Current (A) 16
Rated Impulse Withstand Voltage (kV) 2.5
Rated Supply Voltage AC/DC (V) 230V AC
Terminal Type Screw
Universal Supply Voltage AC (V) 230
