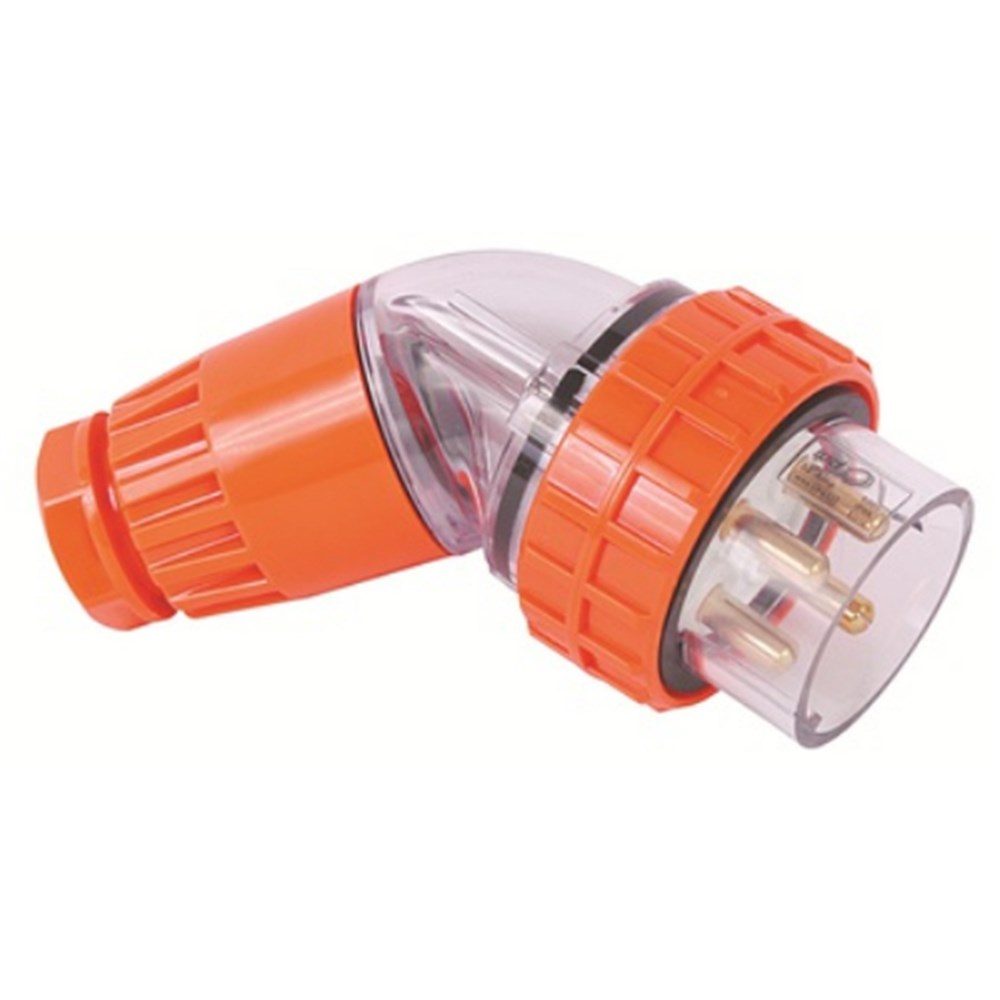

IPD W66AP432 Angled Plug 4 Round-Pin 3-Ph 32A 500VAC/DC IP66 Polycarbonate

Product Code: W66AP432

  • 32 A current rating
  • Supports 500 VAC/VDC
  • IP66 protection rating
  • Durable polycarbonate body
  • Compression gland, 37 mm entry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Angled Plug
Brand IPD
Cable Cross Section 16 sq-mm
Cover Style Clear/Orange
Degree of Protection IP66
Gland Entries 37 mm
Gland Style Compression
Material Polycarbonate
Number of Pins 4
Phase 3
Pin Type Round
Rated Current 32 A
Rated Voltage 500 VAC/VDC
Standards and Approvals AS3123

Description

<p>When considering a reliable plug for industrial and commercial applications, the focus often shifts towards durability, compliance with standards, and suitability for harsh environments. This particular plug is designed to meet those exact needs, offering robust performance and safety.</p><p>Rated at 32 A, this plug efficiently handles substantial electrical loads. Its versatility extends across both AC and DC systems with a rated voltage of 500 VAC/VDC, making it suitable for various power supply requirements in complex installations.</p><p>Adherence to AS3123 standards ensures that this plug meets Australian safety and quality benchmarks. These standards are crucial for maintaining operational integrity in demanding settings where reliability cannot be compromised.</p><p>The IP66 degree of protection further emphasizes its resilience against dust ingress and powerful water jets from any direction. This makes it an ideal choice for outdoor or challenging indoor environments where exposure to elements is a concern.</p><p>Constructed from polycarbonate material, the plug is not only lightweight but also offers excellent impact resistance and thermal stability. Polycarbonate&amp;#39;s durability ensures longevity even under rigorous use, which translates into reduced maintenance costs over time.</p><p>The cable cross-section capacity of 16 sq-mm supports adequate current flow without overheating issues. This feature is particularly important when dealing with high-power equipment that requires efficient energy transmission.</p><p>With gland entries measuring 37 mm in diameter and featuring a compression style, installation becomes straightforward while ensuring secure cable retention. The design minimizes the risk of accidental disconnections or damage due to external forces acting on the cables.</p><p>Additionally, the round pin type enhances connectivity by providing consistent contact pressure across connections. This reduces wear over repeated cycles of plugging and unplugging—an advantage in settings where frequent connection changes occur.</p><p>In summary, this plug stands out as a dependable component engineered to cater to industrial demands effectively. It combines compliance with stringent standards alongside practical features like high ingress protection rating and robust construction materials—all contributing factors that make it a fitting choice for professionals seeking reliability without compromise on performance or safety.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
