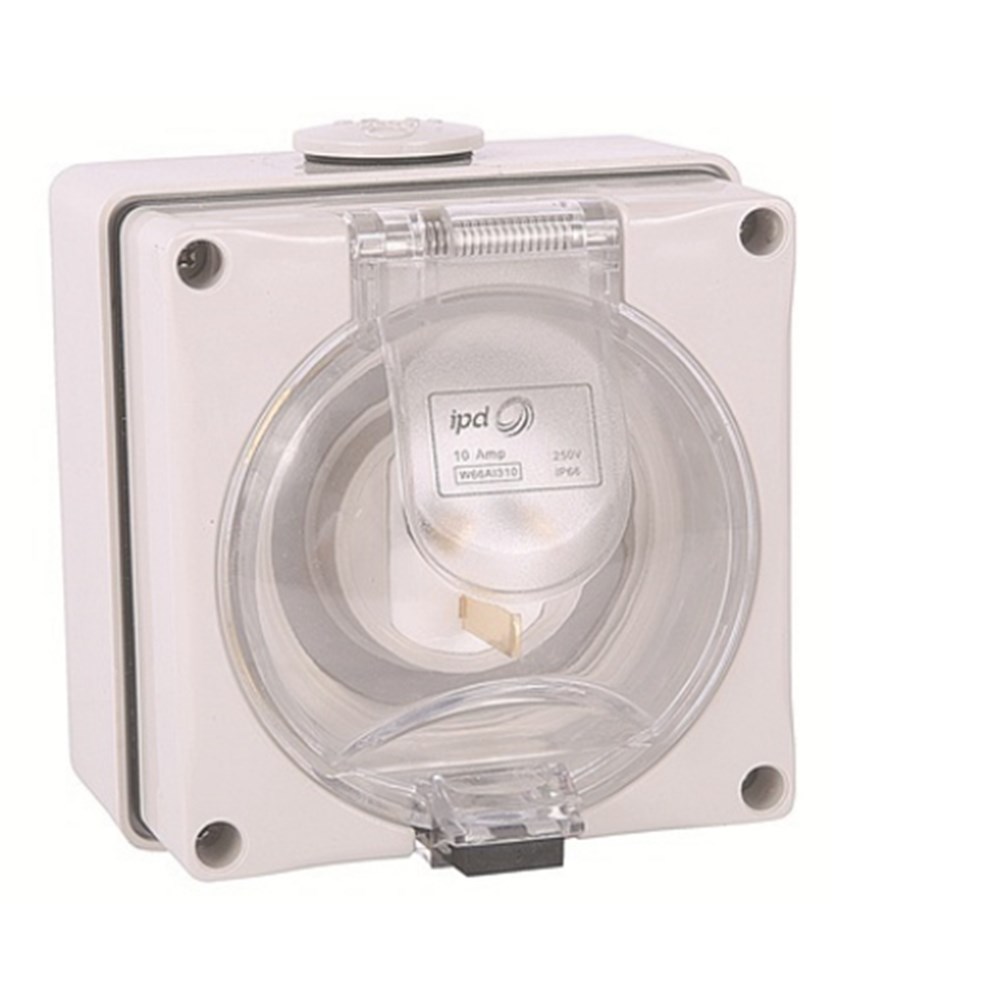

IPD W66AI310LB Appliance Inlet 3 Flat-Pin 1-Ph 10A 250VAC/DC IP66 Polycarbonate For: W66AI310

Product Code: W66AI310LB

  • 10A, 250V appliance inlet
  • Durable polycarbonate build
  • IP66 weather-resistant rating
  • Multiple gland entries: M25 & M20
  • Compact size: 101x101x80 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Cable Cross Section (mm²) 6
No. of Pins 3
No. of Phases 1
Rated Current (A) 10
Rated Voltage AC/DC (V) 250
Suitable For W66AI310
Dimensions (mm) 101W x 101H x 80D
Product Type Appliance Inlet
Brand IPD
Back Box Included No
Cable Cross Section 6 sq-mm
Cover Style Silicone Gasket
Degree of Protection IP66
Depth 80 mm
Gland Entries (1) M25, (2) M20
Height 101 mm
Material Polycarbonate
Number of Pins 3
Phase 1
Pin Type Flat
Rated Current 10 A
Rated Voltage 250 VAC/VDC
Suitable For Use With W66AI310
Width 101 mm

Description

Single phase appliance inlet with 3 flat pins and without base, IP66. Current rating at 10A, voltage rating at 250V. Max cable area 6mm² and stainless steel fixings, silicone cover gasket. Includes low profile base.
