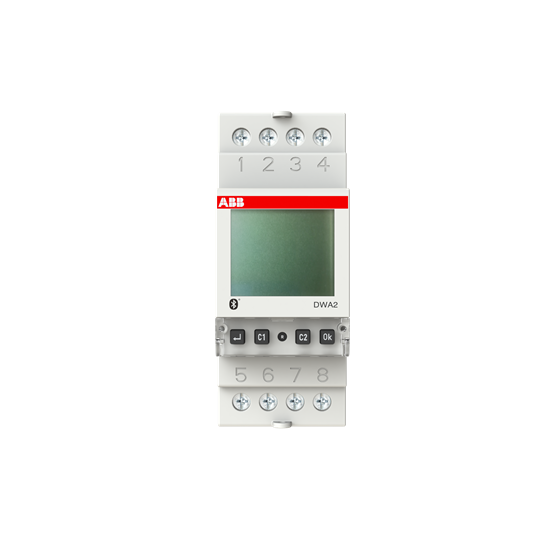

ABB DWA2 Digital Time Switch 1CO 195.5-253VAC 16A

Product Code: DWA2

  • Handles 195.5-253 VAC, 16 A, 4000 W
  • Supports weekly astro function
  • DIN rail mountable; compact size
  • Operating temp: -20 to 50°C
  • Compliant with multiple EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Digital Time Switch
Brand ABB
Accuracy ± 0.5sec/24h
Contact Configuration 1CO
Degree of Protection IP20
Function Weekly Astro
Height 65 mm
Mounting Type DIN Rail
Operating Time 1 min
Operational Temperature -20 to 50 deg C
Rated Current 16 A
Rated Frequency 50/60 Hz
Rated Power 4000 W
Rated Voltage 195.5-253 VAC
Standards and Approvals EN 60730-2-7, EN-301 489-17, EN-300 328, EN-62479, EN 50581
Weight 0.152 kg
Width 35 mm

Description

<p>In the world of industrial and commercial electrical engineering, precision and reliability are key. This product stands as a testament to these values, offering dependable performance for your technical requirements. Designed with versatility in mind, it operates efficiently within a rated voltage range of 195.5-253 VAC and handles a current of up to 16 A, providing a robust power capacity of 4000 W. These specifications ensure that it can meet the demands of various applications without compromising on performance.</p><p>The device is engineered for compatibility with both 50 Hz and 60 Hz systems, making it suitable for diverse operational environments. Its contact configuration features a single changeover (1CO), which is ideal for switching applications where reliability is crucial.</p><p>Installation is simplified with its DIN rail mounting type, allowing for quick integration into existing setups. Measuring at just 35 mm in width and 65 mm in height, this compact design ensures that space constraints are no barrier to deployment.</p><p>One notable feature is its weekly astro function, which provides intelligent time control based on astronomical events—a valuable asset for applications requiring precise timing adjustments throughout the year.</p><p>With an IP20 degree of protection, this product offers adequate safeguarding against solid objects larger than 12 mm while maintaining optimal functionality within an operational temperature range from -20&amp;#176;C to 50&amp;#176;C. This makes it suitable for use in varied environmental conditions without risk of overheating or failure due to cold temperatures.</p><p>The unit complies with several important standards and approvals including EN 60730-2-7, EN-301 489-17, EN-300 328, EN-62479, and EN 50581—ensuring adherence to safety regulations and electromagnetic compatibility standards essential in today&amp;#39;s demanding markets.</p><p>Weighing only 0.152 kg, its lightweight nature simplifies handling during installation or maintenance procedures without sacrificing durability or stability over time.</p><p>Overall operating efficiency is further enhanced by its swift operating time set at one minute—an aspect that contributes significantly towards energy conservation by minimizing unnecessary power consumption when not actively engaged.</p><p>This combination of features makes this product an excellent choice for professionals seeking reliable solutions tailored specifically towards industrial automation needs while adhering strictly within established parameters ensuring seamless integration across multiple platforms effectively meeting all relevant criteria expected from high-quality components utilized extensively throughout modern infrastructure projects globally today.</p>
