W66 Industrial IP66 Switchgear

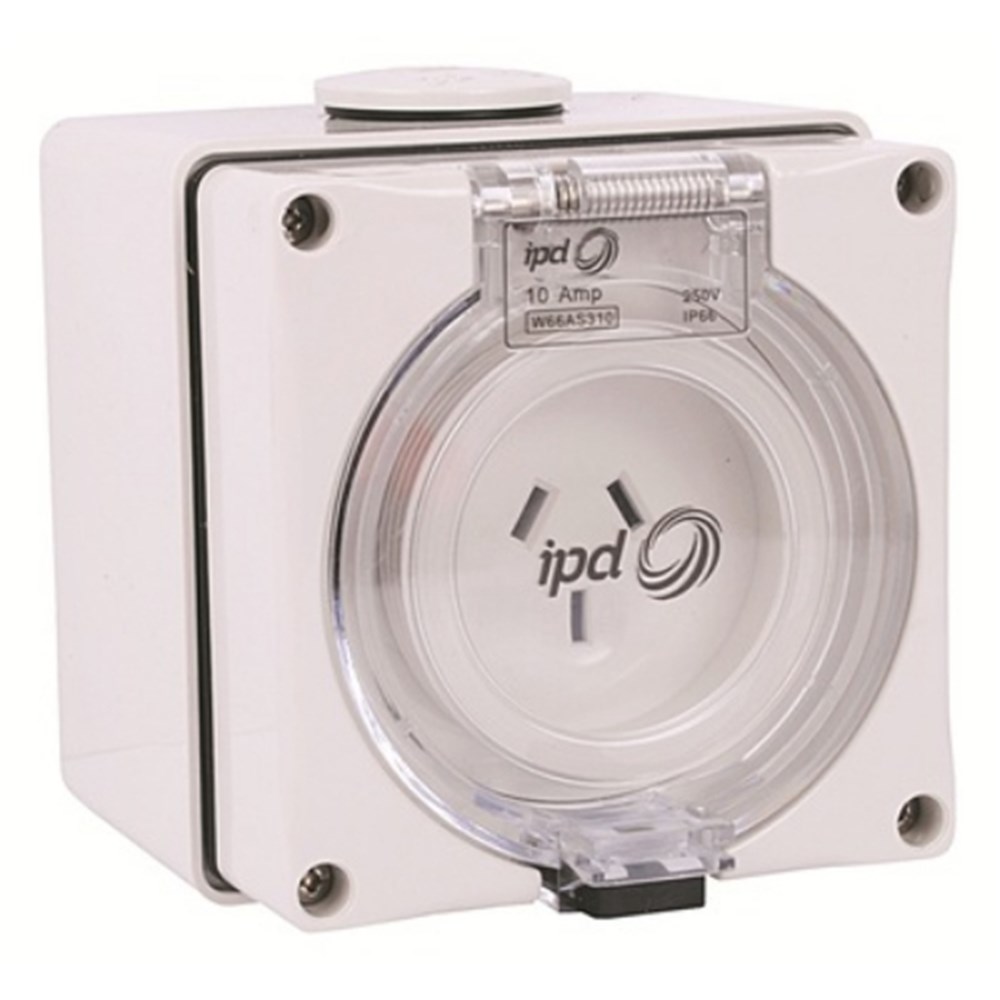

IPD AUTO SWITCHED SOCKET 1 PHASE 3 FLAT PINS 10A 250V LESS BASE, IP66 W66AS310LB

Product Code: W66AS310LB

Single phase automatically switched sockets with 3 flat pins and without base, IP66. Current rating at 10A, voltage rating at 250V. Max cable area 6mm² and stainless steel fixings, silicone cover gasket.

Technical Specifications

Cover Style Light Grey
Material Polycarbonate
Brand IPD
Maximum Cable Cross Section (mm²) 6
Back Box Included No
Gland Entries 1 x M32, 2 x M25
No. of Phases 1
No. of Pins 3
Pin Type Flat
Rated Current (A) 10
Rated Voltage AC/DC (V) 250
Degree of Protection IP66
