Specifications

Auxiliary Contacts	1NO
No. of Poles	1
Operational Temperature Range (°C)	-40 to +55
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	750
Rated Impulse Withstand Voltage (kV)	6
Rated Operational Voltage AC (V)	690
Dimensions (mm)	9.8W x 42.5H x 56D
Suitable For	MC1, MC2 Equipped with Screw Terminals

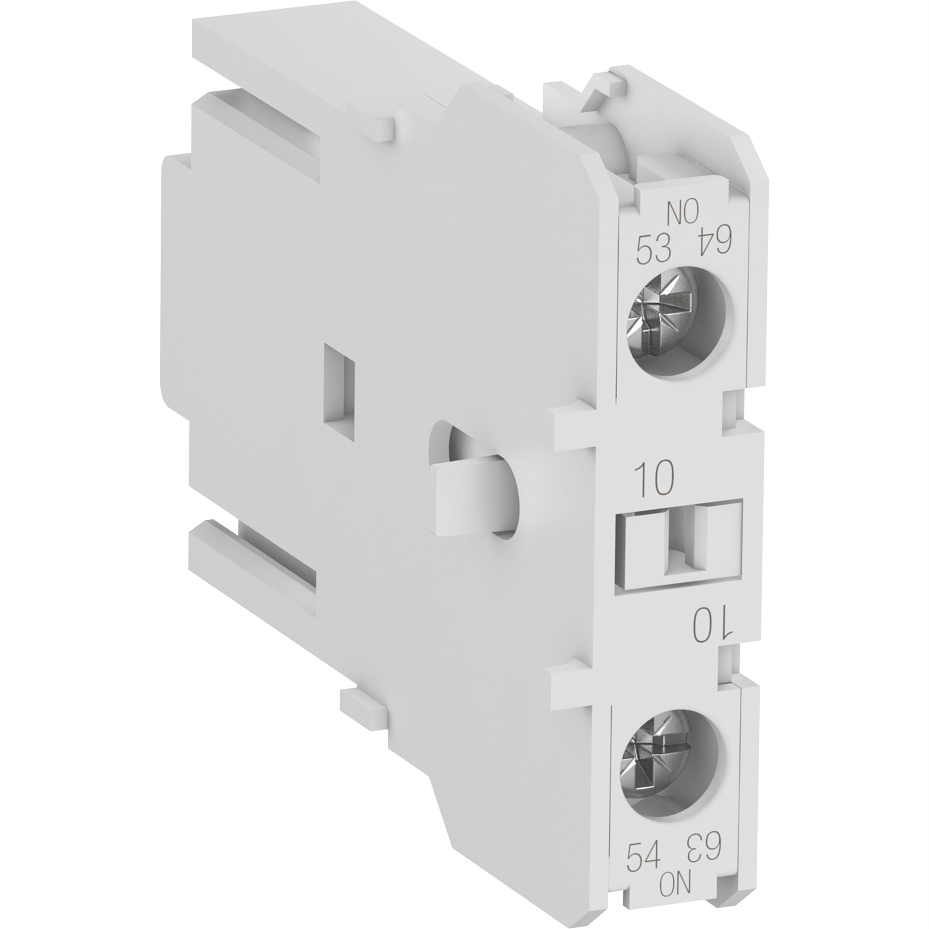

Product Type	Auxiliary Contact
Brand	ABB
Series	M
Degree of Protection	IP20
Depth	56 mm
Height	42.5 mm
Mounting Type	Side
Number of Poles	1
Operational Temperature	-40 to 55 deg C
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	750 V
Rated Voltage	690 VAC
Suitable For Use With	MC1, MC2 Contactor
Terminal Type	Screw
Width	9.8 mm
