Specifications

Dimensions (mm)	64W x 125H x 42D
Suitable For	Earthing
Weight (kg)	0.56
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	16
Weight (g)	560
Maximum Output Short-circuit Current (A)	33.5k (0.5s)
Reference No.	772330

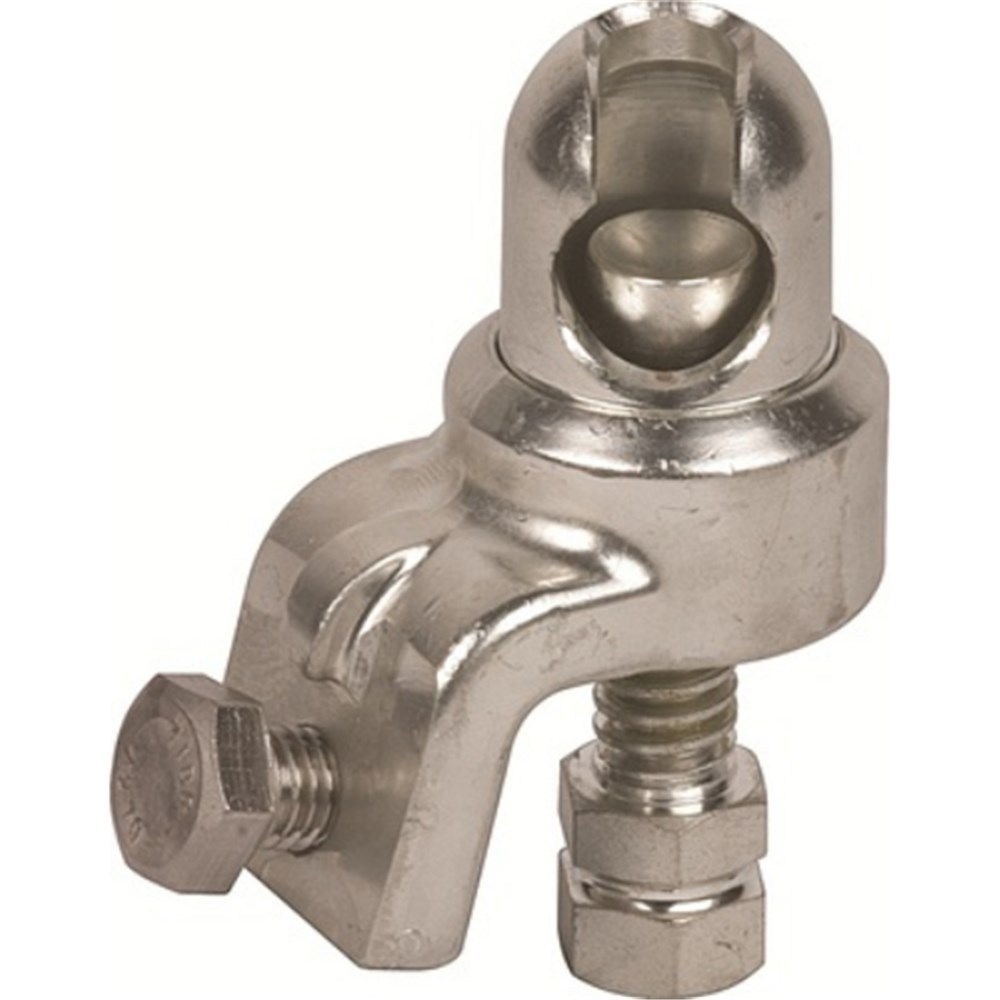

Product Type	Ball Head Cap With Adjustable Hexa Shaft
Brand	DEHN
Connection Type	20 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	42 mm
Height	125 mm
Material	Copper Alloy
Operational Temperature	-25 to 55 deg C
Rated Current	33500 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Suitable For Use With	Earthing Rods
Weight	560 g
Width	64 mm
