Specifications

Dimensions (mm)	64W x 140H x 42D
Suitable For	Earthing
Weight (kg)	0.57
Reference No.	772331
Type	Short-Circuiting Devices
Wire Cross Section (mm²)	16
Weight (g)	566
Maximum Output Short-circuit Current (A)	33.5k (0.5s)

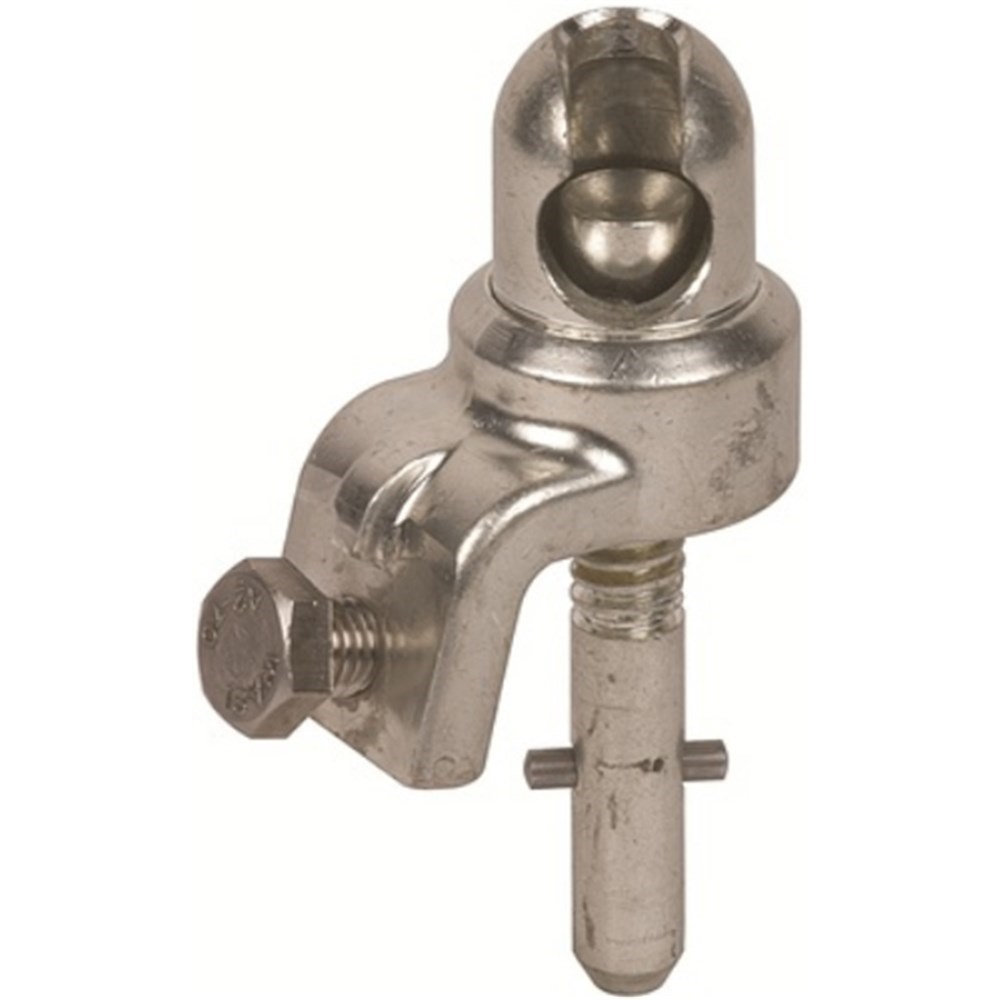

Product Type	Ball Head Cap With Adjustable T-Pin Shaft
Brand	DEHN
Connection Type	20 mm Fixed Ball Point
Cross Section	16-120 sq-mm
Depth	42 mm
Height	140 mm
Material	Copper Alloy
Operational Temperature	-25 to 55 deg C
Rated Current	33500 A
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Suitable For Use With	Earthing Rods
Weight	566 g
Width	64 mm
