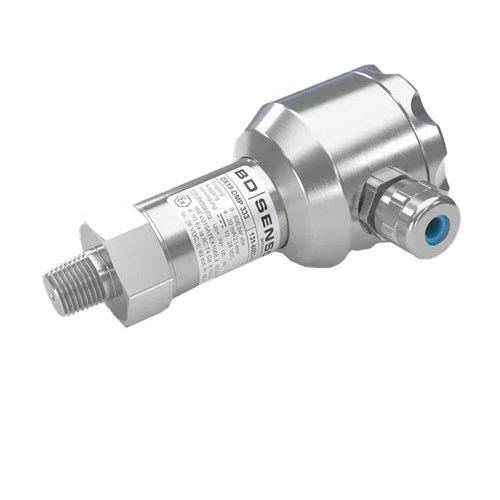

BD Sensors 13016031S3TA01001000 Industrial Pressure Transmitter

Product Code: 13016031S3TA01001000

  • Stainless steel build for durability
  • 4-20 mA output for reliable data transmission
  • High accuracy at 0.35% FSO
  • Wide temp range: -40 to 125°C
  • Certified CE, cULus, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Pressure Transmitter
Brand BD SENSORS
Series DMP 333
Accuracy 0.35% FSO
Application Plant and machine engineering. Machine tools. Hydraulic presses. Injection moulding machine. Handling equipment. Elevated platforms. Test benches. Mobile hydraulics.
Electrical Connection Cable Outlet with PVC Cable (IP67)
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/2 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 160 bar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 100 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The DMP 333 Stainless Steel Sensor is a reliable and robust solution for industrial and commercial applications, designed to meet demanding technical requirements with precision. This sensor offers a 4-20 mA output type, ensuring seamless integration into existing systems that require standard current loop communication.</p><p>With an accuracy of 0.35% Full Scale Output (FSO), the DMP 333 provides precise measurements, making it suitable for environments where exact data is crucial. The sensor operates efficiently in a wide temperature range from -40 to 125 degrees Celsius, allowing it to function in diverse conditions without compromising performance.</p><p>Built to withstand rigorous environments, this sensor boasts CE, cULus, REACH, and RoHS approvals. These certifications guarantee compliance with international standards for safety and environmental impact—a key consideration for industries aiming to maintain high operational standards.</p><p>The DMP 333 is engineered with impressive shock resistance of up to 100 g/1 ms, ensuring durability even in challenging settings where mechanical impacts are common. Its mechanical life extends up to ten million operations, promising long-term reliability and reducing the need for frequent replacements or maintenance.</p><p>Designed with practical connectivity options, the sensor features a G1/2 inch DIN 3852 mechanical connection that facilitates straightforward installation across various setups. Its electrical connection employs a cable outlet with PVC cable rated at IP67, providing excellent protection against dust ingress and water exposure—ideal for outdoor or harsh indoor environments.</p><p>For those concerned about response time in dynamic applications, the DMP 333 delivers quick feedback with a response time of less than or equal to 10 milliseconds. This rapid responsiveness ensures timely data acquisition critical in processes requiring immediate adjustments based on real-time information.</p><p>Additionally, the use of FKM as seal material enhances chemical resistance and longevity under exposure to oils and other aggressive substances typically encountered in industrial settings.</p><p>Overall, the DMP 333 Stainless Steel Sensor stands out as a dependable choice for professionals seeking efficiency combined with resilience in their sensing technology solutions within industrial frameworks.</p>
