Specifications

Product Type	Pressure Transmitter
Brand	BD SENSORS
Series	DMP 334
Accuracy	0.35% FSO
Application	Plant and machine engineering. Commercial vehicles and mobile hydraulics.
Electrical Connection	Cable Outlet with PVC Cable (IP67)
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2" EN 837 [According to EN 837, the pressure port and the complement, at pressure over 1000 bar must be preferably made of stainless steel with a tensile strength of RP > 260 N/mm² in accordance with DIN 17440. The maximum allowed pressure is 1600 bar!]
Operational Temperature	-40 to 125 deg C
Output Type	0-10 V
Response Time	< 5 ms
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard (adjustable) [Not possible in combination with IS-version, compact field housing and cable outlet with PVC cable]
Vibration Resistance	10 g RMS

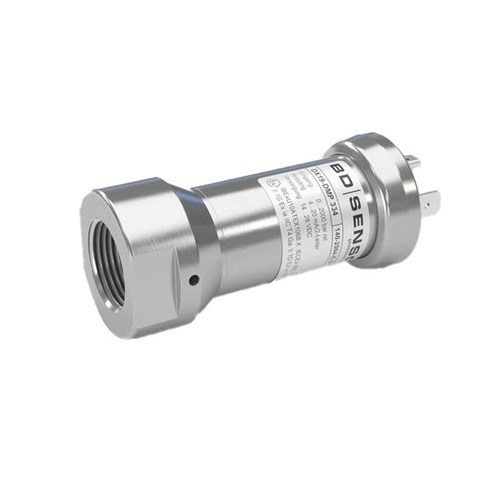

BD Sensors 140700333TA02002041 Pressure Transmitter
