Specifications

Output Signal	0 … 10 V / 3-wire
Response Time (ms)	≤ 3
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 85 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	25
Product Series	17.609 G

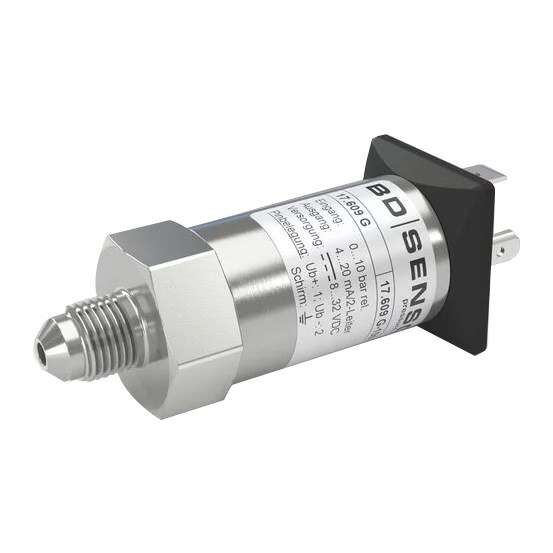

Product Type	Pressure Transmitter Heavy Duty
Brand	BD SENSORS
Series	17.609 G
Accuracy	0.5% FSO
Application	Refrigeration.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 20 g, 25 Hz … 2 kHz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	7/16-20 UNF
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	0-10 V
Rated Pressure	25 bar
Response Time	<=3 ms
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

17.609 G
