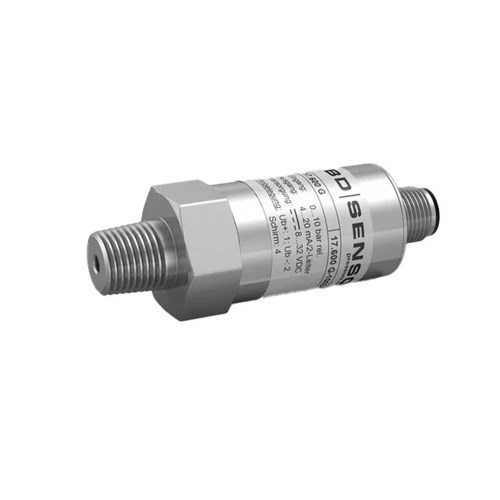

BD Sensors 17600G1002R15100300P000 Pressure Transmitter Heavy Duty

Product Code: 17600G1002R15100300P000

  • Stainless steel construction for durability
  • 4-20 mA output for reliable signal transmission
  • High accuracy of 0.5% FSO
  • Wide temp range: -40 to 125°C
  • CE, cULus, REACH, RoHS certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter Heavy Duty
Brand BD SENSORS
Series 17.600 G
Accuracy 0.5% FSO
Application Presses. Mobile hydraulic. General mechanical engineering. Oxygen applications.
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability Vibration: 20 g, 25 Hz … 2 kHz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 10 bar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Standard

Description

<p>The Stainless Steel Sensor from the 17.600 G series is a robust and reliable choice for professionals in industrial and commercial sectors looking for precision and durability. This sensor offers an output type of 4-20 mA, providing consistent performance with an accuracy of 0.5% FSO, which ensures precise measurements crucial for various applications.</p><p>Designed to withstand harsh conditions, the sensor operates efficiently across a wide temperature range from -40 to 125 degrees Celsius, making it suitable for diverse environments. It adheres to stringent standards and approvals including CE, cULus, REACH, and RoHS, ensuring compliance with international safety and environmental regulations.</p><p>With exceptional shock resistance rated at 500 g/1 ms, this sensor can handle demanding physical impacts without compromising its functionality. Its mechanical life spans up to ten million operations, highlighting its long-term reliability in continuous use scenarios.</p><p>The sensor is built to manage pressures up to 10 bar effectively. It features a G1/4 inch DIN 3852 mechanical connection that provides secure fitting in system assemblies. The electrical connection employs a Male and Female Plug ISO 4400 configuration that simplifies integration into existing systems while maintaining strong contact integrity.</p><p>One of the standout features of this model is its swift response time of less than or equal to 10 milliseconds (ms), allowing it to quickly adapt to changing conditions—an essential attribute in dynamic operational settings.</p><p>Additionally, the seal material used is FKM (fluoroelastomer), known for its excellent chemical resistance and thermal stability. This ensures that the sensor maintains performance even when exposed to aggressive media or high temperatures.</p><p>Overall, this stainless steel sensor combines precision engineering with rugged construction suited for various industrial applications requiring dependable measurement solutions over extended periods. Whether you are upgrading existing equipment or integrating new systems, this product stands out as a solid candidate due to its comprehensive feature set designed with professional requirements in mind.</p>

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
