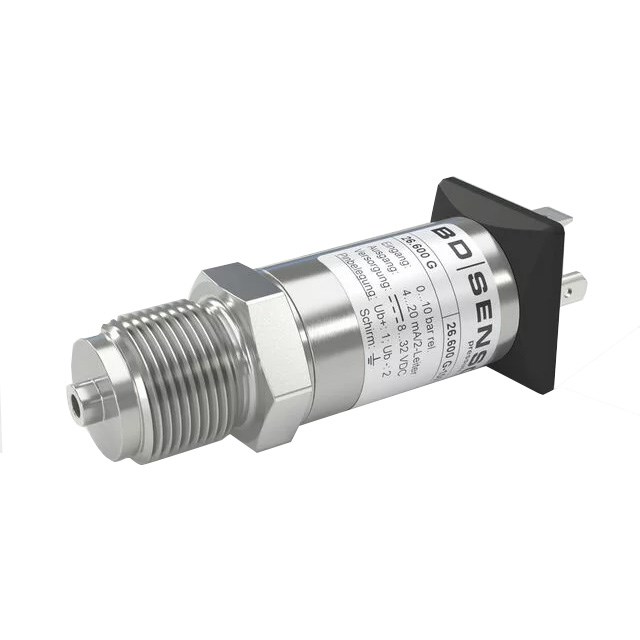

BD Sensors 26600G4002R151003001007 Pressure Transmitter

Product Code: 26600G4002R151003001007

  • Output: 4-20 mA for easy integration
  • High accuracy at 0.5% FSO
  • Wide temp range: -40 to 125°C
  • Durable with 10M operations lifespan
  • CE, cULus, REACH, RoHS certified
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series 26.600 G
Accuracy 0.5% FSO
Application Mechanical and plant engineering. General industrial applications.
Electrical Connection Male and Female Plug ISO 4400
Mechanical Stability Vibration: 10 g, 25 Hz ... 2 kHz according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 40 bar
Response Time <=10 ms
Seal Material FKM
Shock Resistance 500 g/1 ms
Standards and Approvals CE, cULus, REACH, RoHS
Version Oxygen application (Oxygen application with FKM seal up to 25 bar possible)

Description

<p>When it comes to precision and reliability in industrial applications, the Ceramic Sensor from the 26.600 G Series stands out as a robust choice for professionals seeking dependable performance. This sensor is engineered for environments where accuracy and resilience are paramount.</p><p>The sensor offers an output type of 4-20 mA, providing a standard signal that integrates seamlessly with various control systems, ensuring compatibility across different platforms. With an accuracy of 0.5% FSO (Full Scale Output), this sensor delivers precise measurements crucial for maintaining system integrity in complex operations.</p><p>Designed to withstand extreme conditions, this ceramic sensor operates efficiently within a temperature range of -40 to 125 degrees Celsius. Such versatility makes it suitable for diverse applications, from freezing cold storage facilities to high-temperature industrial processes.</p><p>Safety and compliance are guaranteed with approvals from CE, cULus, REACH, and RoHS standards, reflecting its adherence to international safety and environmental protocols. The product&amp;#39;s shock resistance is rated at an impressive 500 g/1 ms, ensuring durability against sudden impacts or vibrations often encountered in dynamic industrial settings.</p><p>With a mechanical life expectancy of up to ten million operations, the longevity of this sensor minimizes maintenance needs and ensures continuous operation over extended periods. It supports a rated pressure capacity of up to 40 bar, making it ideal for high-pressure environments where reliable performance is non-negotiable.</p><p>Installation flexibility is another highlight thanks to its G1/4 inch DIN 3852 mechanical connection coupled with male and female plug options conforming to ISO 4400 standards. These features facilitate easy integration into existing setups without requiring extensive modifications or specialized tools.</p><p>The response time is swift at less than or equal to 10 milliseconds (ms), enabling rapid adjustments and real-time monitoring which are critical in automation systems where timing precision can impact overall efficiency.</p><p>Additionally, the seal material made from FKM provides excellent chemical resistance against oils and other fluids commonly found in industrial settings—further enhancing its suitability for challenging environments where exposure to harsh substances can compromise lesser materials.</p><p>In summary, the Ceramic Sensor from the 26.600 G Series combines precision engineering with robust construction tailored for demanding applications across various industries. Its comprehensive set of features ensures that it meets both operational requirements and regulatory standards while offering long-term reliability—a valuable asset for any technical professional evaluating their equipment needs.</p>
