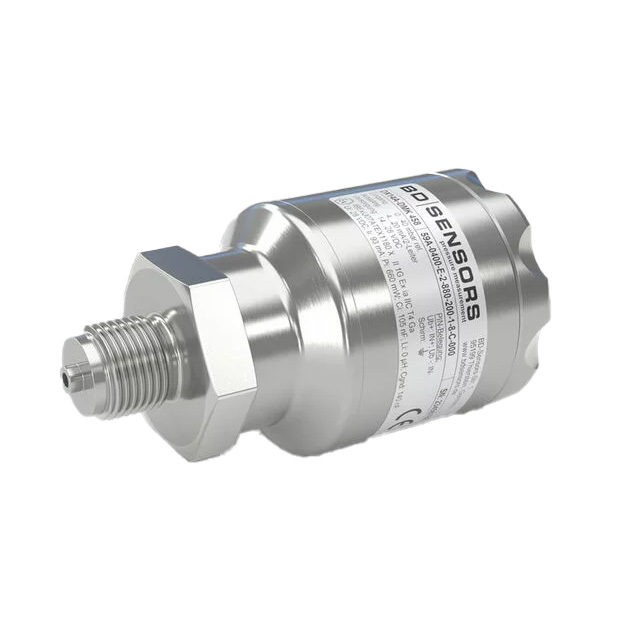

BD Sensors 59BD04912TR3F20182000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 59BD04912TR3F20182000

  • 4-20 mA output for precise signal transmission
  • High accuracy of 0.25% FSO
  • Wide temp range: -40 to 125°C
  • Durable with 10 million operations lifespan
  • Complies with ABS, CE, REACH, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMK 458
Accuracy 0.25% FSO
Application Monitoring of pressure during loading and unloading processes. Monitoring of a ship´s position and draught. Use in anti-heeling systems (Water and sea water). Level measurement in ballast and storage tanks.
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Cable Outlet (TPE-U-Cable)
Mechanical Stability 4 g (according to DNV: Class B, curve 2 / basis: IEC 60068-2-6)
Mechanical Connection Flange DN 25/PN 40 DIN 2501
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Response Time 380 ms
Seal Material FKM
Standards and Approvals ABS, CE, REACH, RoHS
Version Standard

Description

<p>The DMK 458 Ceramic Sensor is a reliable and robust choice for professionals in the industrial and commercial sectors looking for precision and durability. This sensor stands out with its impressive accuracy of 0.25% Full Scale Output (FSO), ensuring precise measurements crucial for various applications.</p><p>Designed to withstand harsh environments, the DMK 458 operates effectively across a wide temperature range from -40 to 125 degrees Celsius, making it suitable for diverse operational conditions. The sensor&amp;#39;s mechanical life is rated at an astounding 10 million operations, underscoring its longevity and reliability in demanding settings.</p><p>The DMK 458 features a flange DN 25/PN 40 DIN 2501 mechanical connection, offering compatibility with standard fittings, which simplifies installation and integration into existing systems. It also includes an electrical connection via a TPE-U-cable outlet, providing secure connectivity essential for maintaining consistent performance.</p><p>In terms of response time, this ceramic sensor delivers readings within just 380 milliseconds. This quick response ensures that your system can react promptly to changes, enhancing overall efficiency.</p><p>Constructed with high-quality materials, the diaphragm is made from Ceramic Al2O3 at a purity level of 96%, providing excellent resistance to wear and corrosion. The seal material is FKM, known for its resilience against chemicals and high temperatures.</p><p>This product adheres to stringent standards and approvals including ABS, CE, REACH, and RoHS certifications. These endorsements signify compliance with international safety regulations and environmental considerations—important factors when selecting components for modern industrial applications.</p><p>Overall, the DMK 458 Ceramic Sensor offers a balance of precision engineering and rugged design suited to meet the needs of today&amp;#39;s technical professionals seeking dependable measurement solutions.</p>
