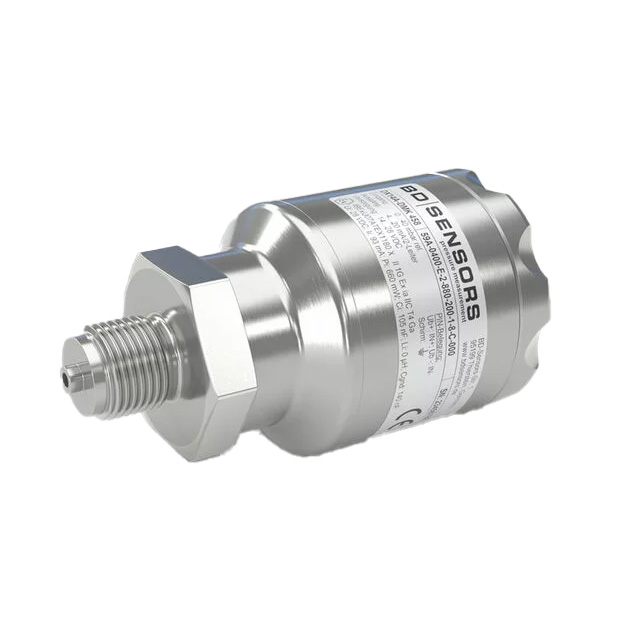

BD Sensors 59BD29012TR3F20182000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 59BD29012TR3F20182000

  • Ceramic sensor with 0.25% FSO accuracy
  • Operates from -40 to 125°C
  • Output: 4-20 mA for reliable signal
  • Durable with 10 million operations lifespan
  • Certified to ABS, CE, REACH, RoHS standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMK 458
Accuracy 0.25% FSO
Application Monitoring of pressure during loading and unloading processes. Monitoring of a ship´s position and draught. Use in anti-heeling systems (Water and sea water). Level measurement in ballast and storage tanks.
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Cable Outlet (TPE-U-Cable)
Mechanical Stability 4 g (according to DNV: Class B, curve 2 / basis: IEC 60068-2-6)
Mechanical Connection Flange DN 25/PN 40 DIN 2501
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Response Time 380 ms
Seal Material FKM
Standards and Approvals ABS, CE, REACH, RoHS
Version Standard

Description

<p>The DMK 458 Ceramic Sensor is a robust and reliable option for those in the industrial and commercial sectors looking for precision and durability. This sensor stands out with its impressive accuracy of 0.25% FSO, ensuring precise measurements critical to maintaining operational efficiency.</p><p>Designed to withstand challenging environments, the DMK 458 operates effectively within a temperature range of -40 to 125 degrees Celsius. This broad operational temperature spectrum makes it suitable for various applications, from extreme cold storage facilities to high-temperature industrial processes.</p><p>With an output type of 4-20 mA, this sensor provides a standardized signal that integrates seamlessly into most control systems, ensuring compatibility without the need for additional converters or adapters. The mechanical life of the DMK 458 is rated at an outstanding ten million operations, promising longevity and reducing maintenance downtime.</p><p>The sensor&amp;#39;s mechanical connection uses a Flange DN 25/PN 40 DIN 2501 standard, facilitating easy installation and integration into existing systems. Its electrical connection features a Cable Outlet with TPE-U-Cable, known for its flexibility and resistance to harsh environmental conditions.</p><p>Constructed with a diaphragm made from Ceramic Al2O3 at a purity level of 96%, this sensor offers excellent chemical resistance and stability under pressure variations. The seal material is crafted from FKM, providing superior resistance against chemicals and heat compared to other materials.</p><p>In terms of compliance, the DMK 458 meets several international standards including ABS, CE, REACH, and RoHS approvals. These certifications ensure that the product adheres to safety regulations while minimizing environmental impact—a crucial consideration in today&amp;#39;s regulatory landscape.</p><p>Additionally, the response time of just 380 milliseconds allows this ceramic sensor to quickly react to changes in conditions—ideal for dynamic environments where rapid adjustments are necessary.</p><p>Overall, the DMK 458 series delivers dependable performance combined with ease-of-use features designed specifically for demanding settings. Whether you&amp;#39;re upgrading your current system or specifying components for new installations—this ceramic sensor offers reliability you can count on without compromise on quality or compliance standards.</p>
