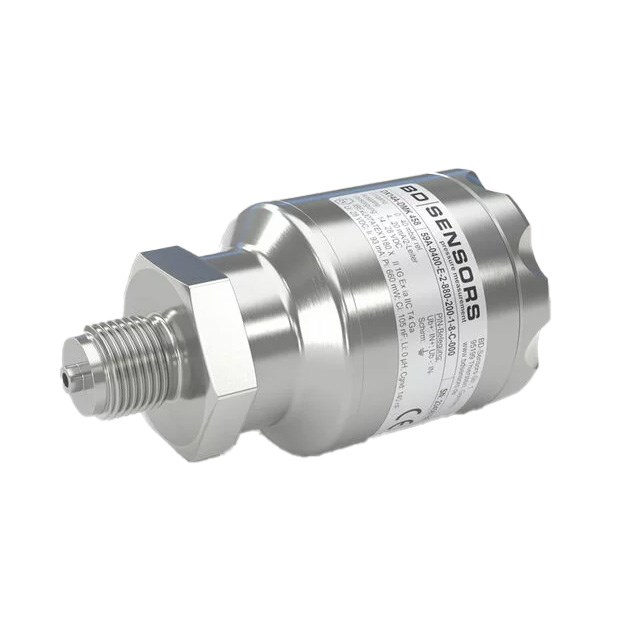

BD Sensors 59BD44912TR3F23182000 Pressure Transmitter Ceramic Al2O3 96% Diaphragm

Product Code: 59BD44912TR3F23182000

  • Ceramic sensor with 0.25% FSO accuracy
  • Wide temp range: -40 to 125°C
  • Flange DN 50/PN 40 DIN 2501 connection
  • Durable with 10 million operations
  • ABS, CE, REACH, RoHS compliant
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMK 458
Accuracy 0.25% FSO
Application Monitoring of pressure during loading and unloading processes. Monitoring of a ship´s position and draught. Use in anti-heeling systems (Water and sea water). Level measurement in ballast and storage tanks.
Diaphragm Material Ceramic Al2O3 96%
Electrical Connection Cable Outlet (TPE-U-Cable)
Mechanical Stability 4 g (according to DNV: Class B, curve 2 / basis: IEC 60068-2-6)
Mechanical Connection Flange DN 50/PN 40 DIN 2501
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Response Time 380 ms
Seal Material FKM
Standards and Approvals ABS, CE, REACH, RoHS
Version Standard

Description

<p>The DMK 458 Ceramic Sensor is a reliable choice for professionals in the industrial and commercial sectors seeking precision and durability. This sensor is designed to deliver accurate measurements with an impressive accuracy of 0.25% FSO, making it suitable for applications where precision is paramount.</p><p>One of the standout features of this sensor is its wide operational temperature range, from -40 to 125 degrees Celsius. This makes the DMK 458 versatile and capable of performing consistently in diverse environmental conditions, whether it&amp;#39;s extreme cold or high heat.</p><p>The sensor&amp;#39;s output type is 4-20 mA, a standard in industrial settings for transmitting analog signals over long distances without significant loss. This ensures that data remains reliable even when transmitted across large facilities.</p><p>Durability is further assured by its mechanical life rated at 10 million operations, indicating robust construction suitable for demanding applications. The ceramic diaphragm made from Al2O3 at 96% purity adds to its resilience against wear and chemical exposure, while the FKM seal material provides excellent resistance to oils and fuels.</p><p>For installation flexibility, the DMK 458 features a flange connection conforming to DN 50/PN 40 DIN 2501 standards. It also comes equipped with a TPE-U cable outlet for electrical connections, ensuring ease of integration into existing systems.</p><p>In terms of compliance and safety, this sensor meets several important standards: ABS certification assures maritime suitability; CE marking indicates conformity with European health, safety, and environmental protection standards; REACH compliance confirms that it meets regulations concerning chemicals; RoHS certification guarantees that it’s free from hazardous substances.</p><p>With a response time of just 380 ms, the DMK 458 offers quick feedback essential in dynamic environments where rapid adjustments are necessary.</p><p>Overall, the DMK 458 Ceramic Sensor stands out as an efficient solution combining reliability with high performance under challenging conditions. Its robust design backed by multiple certifications makes it an ideal choice for engineers looking to enhance their systems&amp;#39; accuracy and longevity without compromising on quality or safety standards.</p>
