Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	EPDM
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Input Pressure (bar)	400

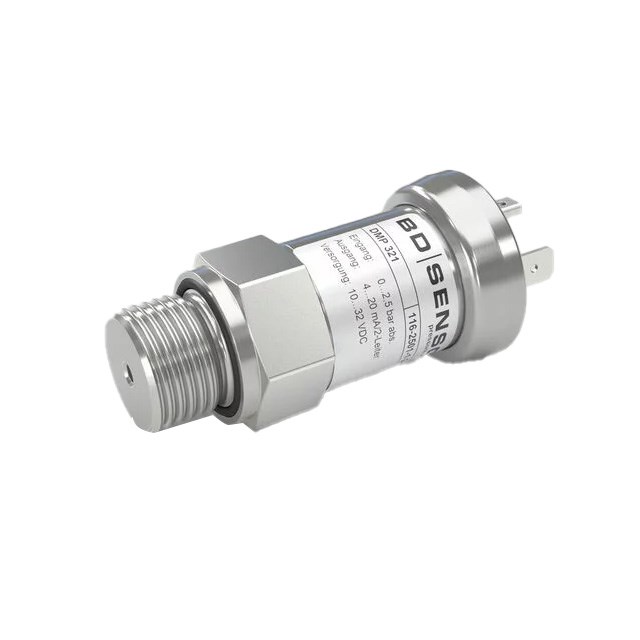

Product Series	DMP 321
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 321
Accuracy	0.25% FSO
Application	Plant and machine engineering. Environmental engineering. Energy industry. Mobile hydraulics.
Electrical Connection	Male and Female Plug ISO 4400
Mechanical Stability	Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 100 g / 11 msec according to DIN EN 60068-2-27.
Mechanical Connection	1/2 in NPT
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles.
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	400 bar
Response Time	<=10 ms
Seal Material	EPDM
Shock Resistance	100 g/1 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Description

DMP 321
