Specifications

Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	≤ 10
Seals	Without (welded version)
Permissible Temperatures	Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (bar)	16

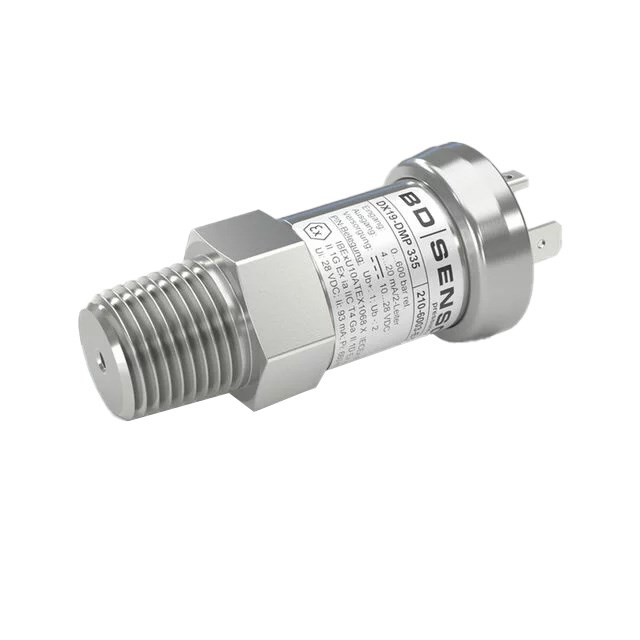

Product Series	DMP 335
Product Type	Industrial Pressure Transmitter
Brand	BD SENSORS
Series	DMP 335
Accuracy	0.5% FSO
Application	Medical technology (Specially suitable for oxygen applications). Plant and machine engineering. Commercial vehicles and mobile hydraulics. Refrigeration. Oxygen application.
Electrical Connection	M12 x 1 Male Plug (4 Pin)
Mechanical Stability	Vibration: 20 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Mechanical Connection	G1/2 in EN 837
Mechanical Life	10000000 Operations
Operational Life	100 million load cycles
Operational Temperature	-40 to 125 deg C
Output Type	4-20 mA
Rated Pressure	16 bar
Response Time	<=10 ms
Shock Resistance	500 g/1 ms
Standards and Approvals	CE, cULus, IEC, REACH, RoHS
Version	Standard

Description

DMP 335
