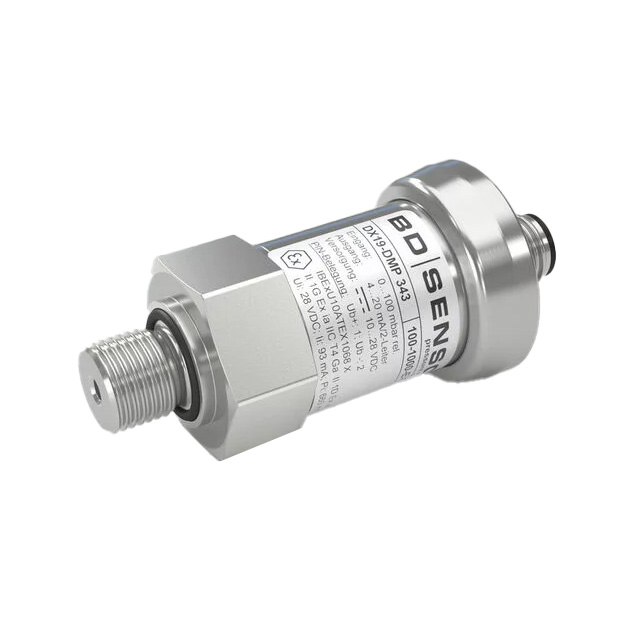

BD SENSORS DMP343 INDUSTRIAL PRESSURE TRANSMITTER DMP343 INDUSTRIAL PRESSURE TRA 100100015100N401000

Product Code: 100100015100N401000

DMP 343

Technical Specifications

Electrical Connection Male and female plug ISO 4400
Electrical Protection Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Input Pressure (mbar) 100
Mechanical Connection 1/4" NPT
Mechanical Stability Vibration: 10 g RMS (25 ... 2000 Hz) according to DIN EN 60068-2-6. Shock: 500 g / 1 msec according to DIN EN 60068-2-27.
Operational Life 100 million load cycles.
Permissible Temperatures Medium: -40 ... 125 °C Electronics / Environment: -40 ... 85 °C Storage: -40 ... 100 °C
Product Series DMP 343
Seals FKM
Brand BD SENSORS
Accuracy Standard for pN ≤ 100 mbar: 0.5 % FSO
Application Plant and machine engineering. Heating and air conditioning.
Output Signal 4 … 20 mA / 2-wire
Response Time (ms) ≤ 10
Version Standard
