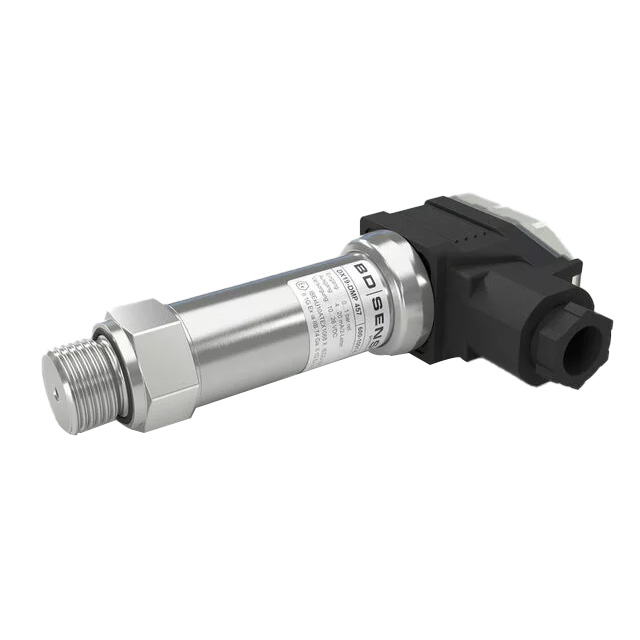

BD Sensors 6001602E3G103001000 Pressure Transmitter

Product Code: 6001602E3G103001000

  • Stainless steel construction for durability
  • 4-20 mA output ensures reliable signal
  • Operates in -40 to 125°C temperature range
  • High accuracy of 0.35% FSO at >=0.4 bar
  • Quick response time of <=10 ms
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Pressure Transmitter
Brand BD SENSORS
Series DMP 457
Accuracy >=0.4 bar, 0.35% FSO
Application Diesel Engines, Drives, Compressors, Pumps, Boiler, Hydraulic and Pneumatic Control Systems.
Electrical Connection Male and female plug ISO 4400 (for cable Ø 4...6 mm)
Mechanical Stability 4 g (according to DNV: class B, curve 2 / basis: IEC 60068-2-6).
Mechanical Connection G1/4 in DIN 3852
Mechanical Life 10000000 Operations
Operational Life 100 million load cycles.
Operational Temperature -40 to 125 deg C
Output Type 4-20 mA
Rated Pressure 16 bar
Response Time <=10 ms
Seal Material FKM
Version Standard

Description

<p>The DMP 457 Stainless Steel Sensor is a robust and reliable solution designed for industrial and commercial applications. This sensor is part of the well-regarded DMP 457 series, known for its durability and precision in challenging environments.</p><p>One of the standout features of this sensor is its impressive accuracy, rated at 0.35% Full Scale Output (FSO) for pressures greater than or equal to 0.4 bar. This ensures precise monitoring and control in various applications, making it an ideal choice for professionals who require dependable performance.</p><p>With an operational temperature range from -40 to 125 degrees Celsius, the DMP 457 can withstand extreme conditions without compromising its functionality. This wide temperature tolerance makes it suitable for use in diverse environments, from frigid cold storage facilities to high-temperature industrial processes.</p><p>The sensor&amp;#39;s mechanical life is rated at an impressive ten million operations, highlighting its long-term reliability and low maintenance requirements. This longevity translates into cost savings over time by reducing downtime and replacement needs.</p><p>In terms of pressure handling capabilities, the sensor supports a maximum rated pressure of 16 bar. Its mechanical connection follows the G1/4 inch DIN 3852 standard, ensuring compatibility with a wide range of systems and simplifying installation procedures.</p><p>Response time is another critical aspect where the DMP 457 excels; it boasts a swift response time of less than or equal to 10 milliseconds. This rapid responsiveness ensures that changes in pressure are detected almost instantaneously, allowing for quick adjustments in dynamic systems.</p><p>Constructed from stainless steel with FKM seal material, this sensor offers excellent resistance against corrosive substances and harsh environmental factors. The combination of these materials enhances durability while maintaining optimal sealing properties to prevent leakage.</p><p>The output type is standardized at 4-20 mA, which is widely used across industries due to its robustness against electrical noise over long distances. It provides a linear signal proportional to the measured pressure level, facilitating easy integration into existing control systems or data acquisition platforms.</p><p>Overall, the DMP 457 Stainless Steel Sensor represents a reliable choice for professionals seeking accurate pressure measurement solutions capable of enduring harsh conditions while delivering consistent performance throughout their lifecycle.</p>
