Specifications

Cable Length (m)	40
Pressure (mH2O)	10
Seals	FKM
Permissible Temperatures	Medium / Electronic / Environment / Storage: -25 … 80 °C
Electrical Protection	Short-circuit protection: Permanent, Reverse polarity protection: No damage, but also no function, Electromagnetic compatibility: emission and immunity according to EN 61326.
Product Series	LMK 858
Output Signal	4 … 20 mA / 2-wire
Response Time (ms)	Mean response time: < 200 [Measuring rate: 5/sec] Max. response time: 380

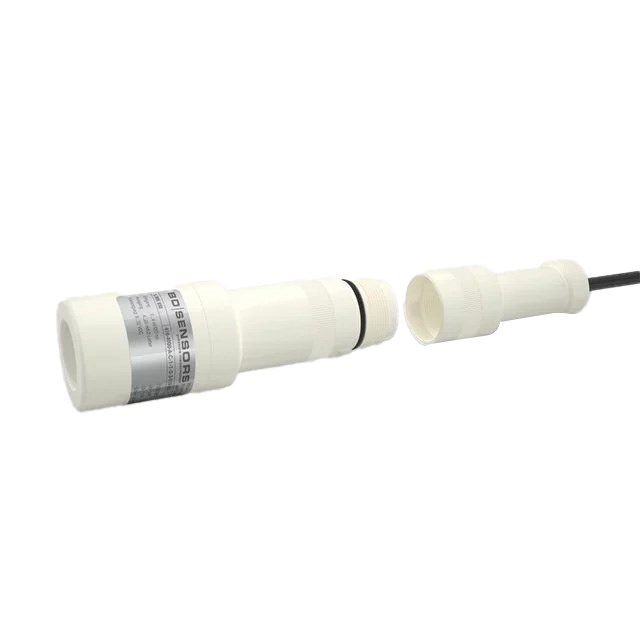

Product Type	Detachable Plastic Probe
Brand	BD SENSORS
Series	LMK 858
Accuracy	0.35% FSO
Application	Sewage: Waste water treatment, water recycling, dumpsites. Aggressive Media: Level measurement in most of acids and lyes.
Diaphragm Material	Ceramic Al2O3 96%
Electrical Connection	PVC Cable
Operational Temperature	-25 to 80 deg C
Rated Pressure	10 mH2O
Response Time	380 ms
Standards and Approvals	CE, cULus, REACH, RoHS
Version	Standard

Documents
